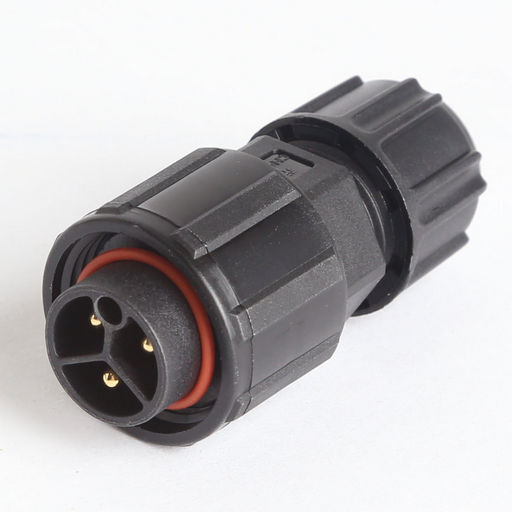

MIDDLE SERIES PLUG SCREW
MALE PINS
SKU code: WES_23003111-02_1
This is a MIDDLE SERIES PLUG SCREW of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES PLUG SCREW |
| Notes | MALE PINS All the Middle products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Middle type connector has a good performance in waterproof , its waterproof rating can reach IP68 and IP68 standards, thus it is ideal for indoor and outdoor harsh working environments. The connector can insert / extract 3000 times or more. Cap to suit: 806-00022-00 |
| Description | Middle series 3pin male plug with pin field installable(screw type) |
| Size | 45x24mmØ |
| Cable | 14AWG |
| Manufacturer | Chogori |
| Contact | 3 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 6.5-9.5 |
| Wire Gauge | 2.5mm² |
| IP | IP68 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A |
| Chogori Cat Page | 69 |
| SKU No | WES_23003111-02_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 23003111-02 |
| SKU | WES_23003111-02_1 |
| Brand | Chogori |
