MULTI-FORMAT TO HDMI / HDBase-T SCALER
MULTI-FORMAT TO HDMI / HDBase-T SCALER
SKU code: WES_CDPS-84HB_1

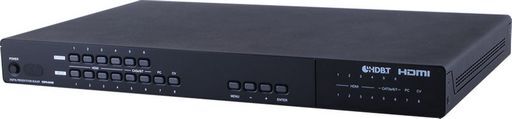

This is a MULTI-FORMAT TO HDMI / HDBase-T SCALER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MULTI-FORMAT TO HDMI / HDBase-T SCALER |
| Notes | This HDBaseT™ capable 8 by 4 Digital Presentation Scaler can switch and scale HDMI/HDBaseT/PC/Composite Video signals from any one of its eight inputs and simultaneously display it on any of its HDMI or HDBaseT outputs. The unit has an HDMI bypass output, allowing local monitoring of any of the HDMI or HDBaseT inputs, and features full 5play™ convergence for easy integration of compatible transmitters and receivers. It has the added benefit of control via IR remote control, RS-232, IP/Telnet and Web GUI, with all information including system status presented on its comprehensive LCD display. Features four HDMI inputs with corresponding L/R audio inputs (3.5mm mini-jack), two HDBaseT CAT5e/6/7 inputs, PC (15-pin D-sub) with L/R audio (3.5mm mini-jack) and Composite Video and L/R audio (3 RCA) and two HDMI outputs, one HDBaseT CAT5e/6/7 output, one Digital Coaxial audio output and one L/R audio 3.5mm mini-jack output.HDMI, HDCP and DVI compliantFeatures four HDMI inputs with corresponding L/R audio inputs, two HDBaseT CAT5e/6/7 inputs, PC with L/R audio and Composite Video and L/R audioFeatures two HDMI outputs, one HDBaseT CAT5e/6/7 output, one Digital Coaxial audio output and one L/R audio 3.5mm mini-jack outputSupports scaling of any input signals to a wide range of HDTV and PC output resolutions up to 1080p and WUXGA (RB)Supports switchable HDMI bypass allowing local monitoring of any of the HDMI or HDBaseT inputsSupports High-definition Audio of LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmissionSimultaneous video output of the selected source through the HDBaseT and HDMI outputs and audio output through the digital coaxial and analog L/R outputsDigital to Analog and Analog to Digital Audio conversion (DAC/ADC)Supports distances of up to 100 metres over industry standard CAT5e/6/7 cablesSupports HDBaseT LAN serving function to compatible ReceiversSupports Power over Cable (PoC) on the CAT5e/6/7 output to a compatible Receiver |
| Description | Multi-format to HDBT/HDMI scaler |
| Input | 4x HDMI, 2x CAT5e/6/7, 1x VGA, 1x CV |
| Output | 2x HDMI, 1x CAT5e/6/7, 1x HDMI (Bypass) |
| Upscaled TV Res. | 1080p@50/60 |
| Upscaled PC Res. | WUXGA@60 (RB) |
| Downscaled TV Res. | 480p/576p |
| Downscaled PC Res. | VGA@60 |
| Frame Rate Conversion | 50/60 |
| YUV Input | 1 |
| YUV Output | 1 |
| CV Output | 1 |
| S-Video Output | 1 |
| Page | 61 |
| Manufacturer | Cypress |
| Scaler | Down |
| SKU No | WES_CDPS-84HB_1 |
