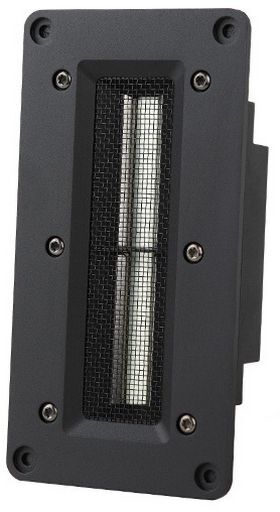

NEO-CD 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS
5 POLYCARBONATE VERTICAL RIBBON TWEETER MATCHED-PAIR
SKU code: WES_CD2.0BK_1
This is a NEO-CD 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS of brand Fountek.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | NEO-CD 2.0 RIBBON TWEETERS FOUNTEK - SOLD IN MATCHED PAIRS |
| Notes | 5 POLYCARBONATE VERTICAL RIBBON TWEETER MATCHED-PAIR This is a vertical, double height version of the popular Neo3.0 Ribbon. Utilising the same special aluminium in a double height optioned package. Super-strong Neodymium offers extra efficiency and linear field density. Reinforced sandwich diaphragm reduces resonance & improves power. Low distortion factor, good power-handling capabilities, flat impedance. High linear impedance and amplitude response over a very broad range. Attractive silver rough-finish aluminium face plate with rubber grommet. Quality polycarbonate package with low stray flux for close to TV use. Minimum crossover frequency is at least 2.5KHz 3nd Order (-18dB) Higher crossover frequency will give higher system total power handling and/or will allow gentler slope (but must be at least -24dB @ 1.4KHz). Ribbon diaphragm 34mg, (960mm²) 8mm X 120mm X 0.02mm Super strong 0.6 Tesla Neodymium magnet Impedance 7 Ohm, DC 0.02 ohm [Beware!]Sensitivity 98dB1.4KHz to 40KHz and aboveResonance frequency 300HzPower 20W Normal, 60W MaxFascia 85x165mm Silver or Black5” (120mm) Ribbon Tweeter pair:SOLD IN MATCHED PAIRSSuper strong Neodymium magnet fro high efficiency Build-in impedance conversion transformer Effective from 1,200Hz upwards due to the large diaphragm area and low self-resonance. Thin enforced sandwich ribbon diaphragm Low distortion factor, good power-handling capabilities, high linear impedance and amplitude frequency response and the broad frequency response range. Flat impedance from 1,000 to 40,000Hz Requires 18dB crossover |
| Type | Ribbon |
| Size | 4.7' |
| Price Type | Pair |
| Power | 50Wmax |
| Freq. | 1.2K-40KHz |
| Impedance | 7Ω |
| Depth | 75mm |
| Mag. | 0.6T |
| Sens. | 97dB |
| Re | 0.02Ω |
| Sd | 960mm² |
| Pmax | 50W |
| Diam. | 165x85mm |
| Manufacturer | Fountek |
| Colour | Black |
| Brand. | Fountek |
| SKU No | WES_CD2.0BK_1 |
