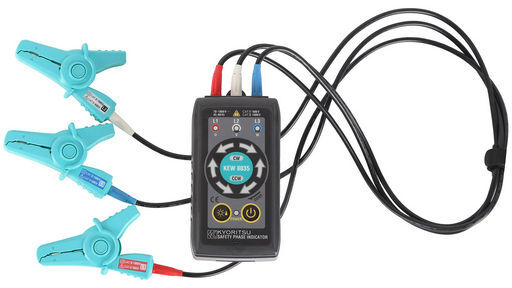

NON-CONTACT PHASE ROTATION TESTER KYORITSU
COMPLIES WITH IEC 61010-1 CAT III 1000 V & CAT IV 600 V
SKU code: WES_KEW8035_1
This is a NON-CONTACT PHASE ROTATION TESTER KYORITSU of brand Kyoritsu.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | NON-CONTACT PHASE ROTATION TESTER KYORITSU |
| Notes | COMPLIES WITH IEC 61010-1 CAT III 1000 V & CAT IV 600 V The Kyoritsu KEW8035 non-contact phase rotation tester can indicate a presence of live line and phase sequence with the equipped LED and buzzer while clipping the 3-phase line over the jacket of a conductor. The unit requires no metal contact, ideal for safer and faster testing. It has a voltage range of 70V to 1000V. KEW8035 uses a combination of LED and audible tones to indicate phase direction. Green LEDs are used for clockwise direction with an intermittent tone. Red LEDs are used for anti-clockwise direction with a continuous tone It includes a carrying case, 4x AA alkaline batteries, and an instruction manual.The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.The instrument can be fixed to a metal panel via the magnet on the back side.Wide measuring range for 3-phase installations from 70V to 1000V AC.Super brightness function permits clear LED's indication also in sunshine.Complies with IEC 61010-1 CAT IV 600V and CAT III 1000V. |
| Manufacturer | Kyoritsu |
| SKU No | WES_KEW8035_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | KEW8035 |
| SKU | WES_KEW8035_1 |
| Brand | Kyoritsu |
