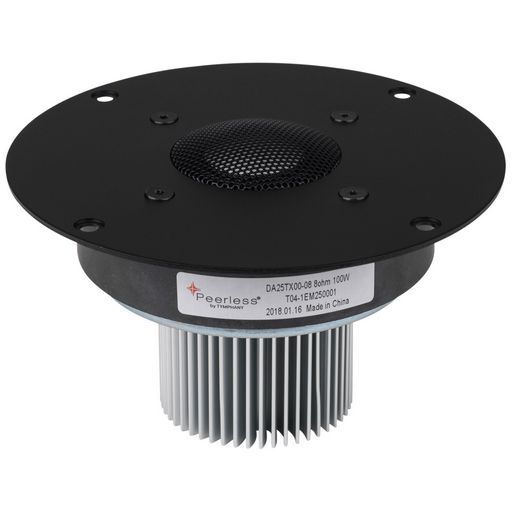

PEERLESS BY TYMPHANY 1 CORUNDUM DOME TWEETER
PEERLESS BY TYMPHANY 1 CORUNDUM DOME TWEETER
SKU code: WES_DA25TX00-08_1
This is a PEERLESS BY TYMPHANY 1 CORUNDUM DOME TWEETER of brand Peerless.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | PEERLESS BY TYMPHANY 1 CORUNDUM DOME TWEETER |
| Notes | The 1 corundum dome tweeter delivers better performance than common aluminium domes and is less expensive than alternatives like beryllium, etc. Features a new rear chamber for a lower Fs and high excursion and power capability. This tweeter can handle lower crossover frequencies while producing minimal distortion at high SPL. The on and off-axis response is impressively smooth with cone breakup moved up into the in-audible. Aluminium face plate with removable protective grille. New Tymphany technology offering excellent price performance.Remarkably flat response from 1,000 thru 20,000 Hz (± 1.5 dB)Large copper cap lowers inductance and minimizes distortionUnderhung copper voice coil on a vented aluminum former with ample excursion capabilityDeep rear chamber with integrated heatsink for low Fs and high power handlingCorundum dome is extremely rigid with excellent dampingHuge motor assembly provides excellent control and high efficiency Corundum is an exceptionally hard and tough material. It is the third-hardest mineral, after diamond and moissanite. Corundum is a crystalline form of aluminium oxide typically containing traces of iron, titanium, vanadium and chromium. It is a rock-forming mineral. |
| Description | PEERLESS 1' CORUNDUM DOME TWEETER |
| Cms | 0.2037mm/N |
| Coil | 25.4mmØ |
| Depth | 67.6mm |
| Fs | 633.75Hz |
| Impedance | 8Ω (Re 6.89Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 1 |
| Le | 0.01mH |
| Manufacturer | Peerless |
| Mms | 0.3g |
| Power | 100Wrms |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Qes | 0.85 |
| Qms | 1.98 |
| Qts | 0.6 |
| Re | 6.89Ω |
| Sd | 6.6cm² |
| Sens. | 88.94dB |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.01L |
| Width | 123mmØ |
| Zn | 8Ω |
| SKU No | WES_DA25TX00-08_1 |
