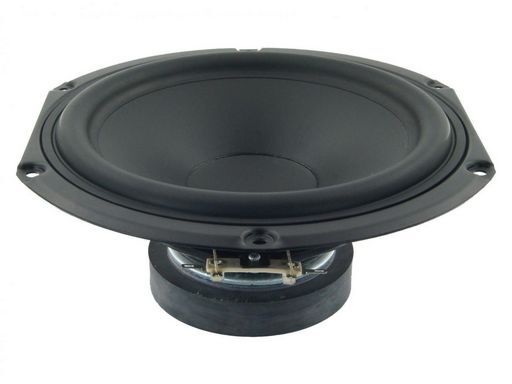

PEERLESS BY TYMPHANY 6½ MID-WOOFER SDS PAPER
STEEL BASKET - COATED PAPER
SKU code: WES_830657_1
This is a PEERLESS BY TYMPHANY 6½ MID-WOOFER SDS PAPER of brand Peerless.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | PEERLESS BY TYMPHANY 6½ MID-WOOFER SDS PAPER |
| Notes | STEEL BASKET - COATED PAPER The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 6.5 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today. The SDS woofers are characterized by their very smooth frequency response all the way into the midrange, with low distortion and consistent off-axis performance. Applying the best in Danish engineering, but manufactured to be very affordable, these audio transducers are ideal for use in small surround sound systems and other hi-fi applications.Transducer Size 6 in – DC Resistance 6.05 Ω ±5.0% Resonant Frequency 44.75 Hz 15% Half Space Sensitivity @ 2.83V 89.46 dB ±1.01 Sensitivity @ 1W/1m 88.5 dB ±1.01 Rated Noise Power (IEC 268-5 18.1) 60 W – Test Spectrum Bandwidth 40Hz - 4kHz 12 dB/Oct – Effective Piston Area 141 cm2 – Moving Mass 11.5 g – Motor Force Factor 5.98 Tm – Voice Coil Inner Diameter 25.73 mm – Gap Height 6 mm – Maximum Linear Excursion 3.5 mm – Ferrofluid Type – Minimum Impedance 6.44 Ω ±7.5% Voice Coil Inductance 0.38 mH – Mechanical Q Factor 2.74 – Electrical Q Factor 0.55 – Total Q Factor 0.46 – Ratio 98.35 fs/Qts – Energy Bandwidth Product ((1/Qes)fs) – Suspension Compliance 1101.4 μm/N – Effective Cone Diameter 13.4 cm – Motor Efficiency Factor 5.9 (Tm2)/Ω – Voice Coil Former Material ASV – Transducer Mass 0.84 Kg – Equivalent Volume 30.77 L – |
| Description | PEERLESS 6½' MID-WOOFER SDS PAPER |
| Power | 60Wrms |
| Coil | 25.7mmØ |
| Impedance | 8Ω (Re 6.0Ω) |
| Sens. | 89.5dB |
| Qms | 2.74 |
| Qes | 0.55 |
| Qts | 0.46 |
| Vas | 30.77L |
| Fs | 45Hz |
| Manufacturer | Peerless |
| Le | 0.38mH |
| QTY | 1 |
| Cms | 1.101mm/N |
| Mms | 11.5g |
| Sd | 141cm² |
| Width | 171mmØ |
| Power (RMS) | 51-100 Watt |
| Inch | 6.5 |
| Size | 6.5' |
| Prms | 60W |
| Depth | 69.1mm |
| Re | 6Ω |
| Impedance (Ohm) | 8 ohm |
| Zn | 8Ω |
| Price Type | each |
| Type | Mid-Woofer |
| SKU No | WES_830657_1 |
