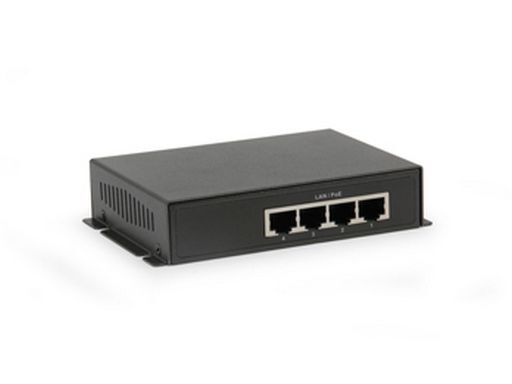

This is a .PoE HYBRID FIBRE RECEIVER of brand LevelOne.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .PoE HYBRID FIBRE RECEIVER
Notes CONVERT FIBRE TO PoE Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.Extend data and power up to 2km via a single Hybrid Fiber CableConnects PoE devices at a distant remote locationOutput per port: 56Vdc, 20W-60W (Depending on distance)Flexible installation compact metal casing with rack mount facilityLED indicators show verification of power, fiber, LAN activitySupports auto-negotiation with 10M/100M, full/half duplex capabilitySupport auto MDI-MDIX configuration to match the end of the linkOne Fiber Optic LC connector and one or four RJ-45 connectorsOptional built-in High Power PoE 4 Port Hub on PFE-1004R
DescriptionPoE Extender Over Hybrid Fibre, Receiver With 4 Poe Outputs
TypeReceiver
Output4 Port PoE
Weight0.25
Dimensions28x133x90mm
EAN4015867186954
OEM553008
Power60W
UPC846359032268
PackagingCorrugated Box
ProtocolIP
ColourIron-gray
ManufacturerLevelOne
ItemMedia Converter
ContentPFE-1004R Quick Installation Guide
SuitsPFE-1011R-V1 PFE-1014R-V1 PFE-1001R-V1 PFE-1101T-V1 PFE-1001T-V1
IPYes
SKU NoWES_PFE-1004R_3
