This is a replacement belt. It is suitable for replacing PIX appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET

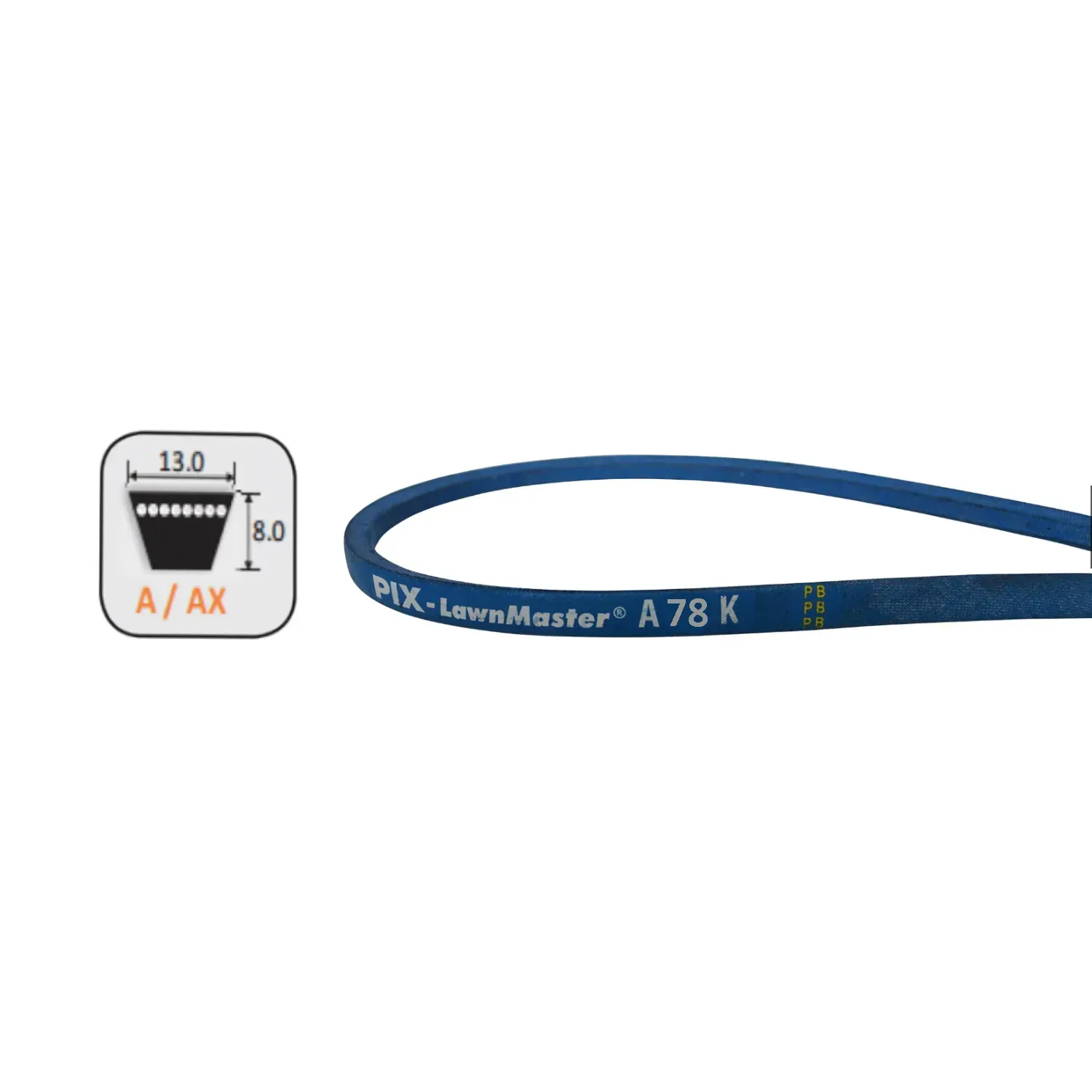

TitleBelt Replaces Cox V28, V04 and SV04, Kingcat V28 or Murray 314572
BrandPIX
Replacement ItemBelt
MPNPN128
Notes

Replaces Belt#:

Cox   V28, V04 and SV04
Kingcat   V28
Murray   314572

Fits:

Cox
Conquest models   CR8400 and CR8401 as the upper transmission belt
New Generation   13hp, 14hp, 14.5hp, 16.5hp, 16hp, 18hp, 5302G, 5303L and 5398A (1998 to 2002) as the engine to clutch belt
Stockman   16hp SOME 23K94 and SOME 23C95 (1993 to 1994) as the forward and reverse belt
Z Cut model   8804J ZTR (2004) model ride on lawnmower as the direction control belt

Kingcat
40" cut side discharge 16hp electric clutch KR6901, KR6902, KR6903, KR6905, KR6906, KR6907 and KS6904 as the PTO to cutter deck belt
7300J and KR7307 as the cutter deck belt

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 78" (mm): 1981mm
Outside circumference (inches) 80" (mm): 2032mm
(non-)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU BES_0001182
Brand PIX
Shipping Weight 1.0000kg
