This is a replacement belt. It is suitable for replacing PIX appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET
TitleBelt Replaces Craftsman, MTD or Rover 754-04219 or 954-04219, Cub Cadet 754-3039 or 954-3039 or Toro 102742
BrandPIX
Replacement ItemBelt
MPNPN149
Notes

Replaces Belt#:

Craftsman   754-04219 or 954-04219
Cub Cadet    754-3039 or 954-3039
MTD   754-04219 or 954-04219
Rover   754-04219 or 954-04219
Toro   102742

Fits:

Craftsman
46" cut   247.28888 as the cutter deck belt

Cub Cadet
44" cut   Z- Force fitted with Briggs and Stratton engines and round centre hole blades as the cutter deck belt

MTD
46" cut   20/46 2011 - 13AT77KT306 and 13AT78KT306 as the cutter deck belt
2012 - 13AT785T306 as the cutter deck belt 2011 and 2012 - 13AT77KT308 as the cutter deck belt

Rover
46" cut   2012 - Raider 19/46 13AO91WT333 as the cutter deck belt

Toro
 42" cut   300, 400, 500 deck 0542MS and 1542SC as the PTO to cutter deck belt
Troy Bilt
46" cut   Horse XP  2011 - 13WX79KT011 as the cutter deck belt
2012 - 13AX79KT309 as the cutter deck belt

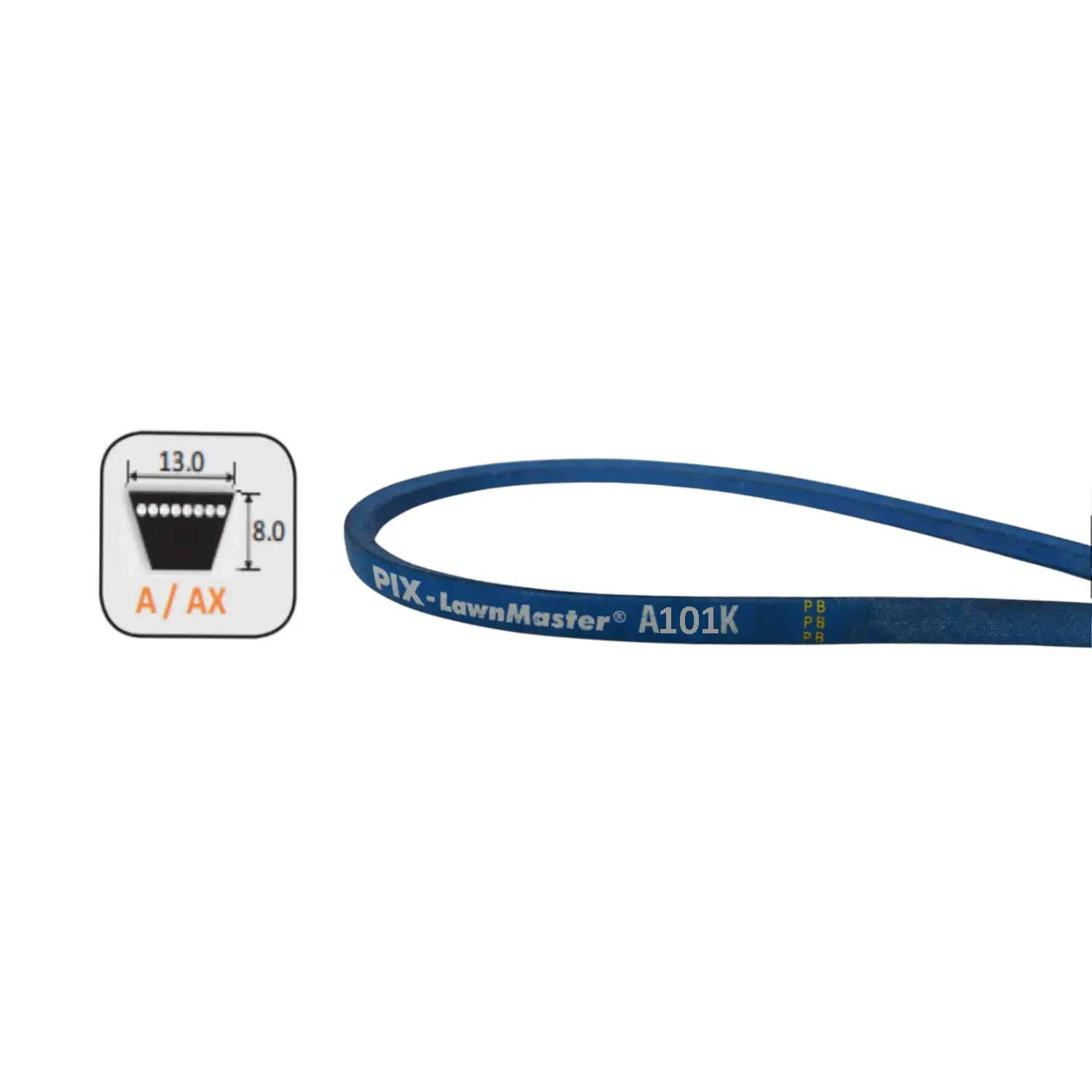

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 101" (mm) 2565
Outside circumference (inches) 103" (mm) 2616
(Non-)
Made with Kevlar™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
