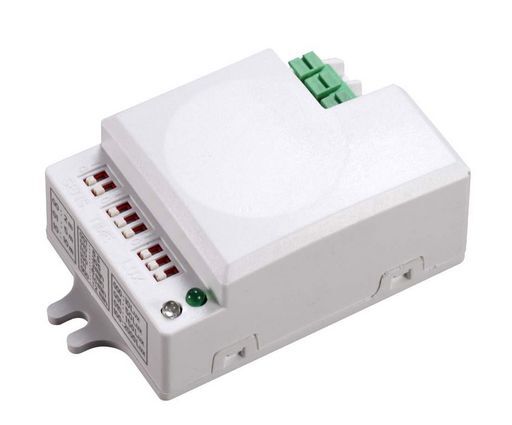

RADAR MOTION ACTIVATED SWITCH 240VAC
HIDDEN BEHIND-CAVITY MICROWAVE SENSOR - ENSA
SKU code: WES_ENSA-MS1_1
This is a RADAR MOTION ACTIVATED SWITCH 240VAC of brand Ensa.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | RADAR MOTION ACTIVATED SWITCH 240VAC |
| Notes | HIDDEN BEHIND-CAVITY MICROWAVE SENSOR - ENSA Uses radar to detect motion. Built-in daylight sensor. LEDs for setup. Adjustable detection range (2 ~ 8m radius), 360° detection arc and it may detect motion through doors, glass windows or thin walls. When movement is no longer detected, the light will turn off automatically as per the on-time delay settings (5s ~ 10min). The daylight sensor is also disabled while the light is on, preventing any false triggering of the light. 250Vac 500W 40x60x25mmDaylight Harvesting is an environmentally friendly solution using Intelligent energy saving switches with a variety of different sensors to control light activation. This combination of sensors enables your lights to illuminate when you need them to, saving you on power costs and extending the life of your investment. Each switch features adjustable daylight sensing, movement sensing and on-timer delay so you may tailor light use to your installation requirements. Radar is an active microwave motion sensor technology that is 5.8GHz 0.2mW (<0.02% the energy of a mobile phone) and offers the advantage of extended range (up to 15M) with improved detection reliability with less susceptibility to environmental influence when compared to the common PIR (Passive Infra-Red sensor) with a range of around 10 metres.Input Voltage 220 ~ 240VAC 50Hz Power Consumption 0.9W (daylight/motion sensing only) Maximum Rated Load 500W (resistive) / 200W (inductive) Detection Motion Detection 5.8GHz microwave CW radar, ISM band Detection Range 360°, 180° / 2m, 5m, 8m (adjustable) Detection Speed 0.6 ~ 1.5m/s Daylight Sensor 5, 30, 150, 2000 Lux (adjustable) On-time Delay 5s, 30s, 90s, 180s, 300s, 600s (adjustable) General Ingress Protection Indoor use only Operating Environment -20 ~ 40°C Recommended Install Height 1.8 ~ 2.5m Dimensions 40 x 60 x 25mm |
| Manufacturer | Ensa |
| Item | Sensor |
| Style | Radar |
| SKU No | WES_ENSA-MS1_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | ENSA-MS1 |
| SKU | WES_ENSA-MS1_1 |
| Brand | Ensa |
