This is a replacement rego 250mj/h twin stage single bottle regulator with f/p & tp.

SALIN is a leading Australian appliance spare parts distributor specializing in REGO PRODUCTS appliances. We take pride in our ability to bring hard-to-find REGO PRODUCTS spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our REGO PRODUCTS range is genuine.

TECHNICAL SHEET
TitleREGO 250MJ/h Twin Stage Single Bottle Regulator with F/P & TP for LPG CARAVAN SHOP RESTUARANT
BrandRegO Products
Notes

REGO™ Twin Stage Regulator kit 250MJ/h 1/2″ outlet, single bottle w/ flexible pigtail and test point.

Description:

Kit comes with:

  • REGO™ twin stage regulator, guaranteed 250MJ/h @ 2.75kPa
  • Single bottle adapter
  • 450mm flexible stainless steel braided pigtail
  • Test point adapter
  • Mounting bracket
  • Regulator to bracket screws x2
  • Bracket mounting screws x2
  • Spanner
Application:

This regulator is perfect for an everyday caravan LPG installation, (<250MJ/h) it comes with all the bits to mount the regulator and connect to the cylinder. It includes a test point for pressure and leak testing, and a short pigtail perfect for the tight space within the cylinder compartment. It has a 1/2″ NPT female outlet, adapters to pipework sold separately.

Special Features:

This regulator has been tested for Australian conditions and has been rated to deliver a guaranteed 250MJ/h at 2.75kpa (11″ WC).

  • Includes an adapter for one cylinder 1/4″ male NPT by 1/4″ female inverted flare.
  • Large vent helps prevent blockage.
  • 1st stage vent outlet is tapped ⅛” female NPT for vent piping.
  • Second stage vent outlet is tapped to ⅜”female NPT for vent piping.
  • With 15 PSIG inlet pressure, the regulator is designed to not pass more than 2 PSIG downstream with the seat disc removed (complies with over pressure protection requirements).
  • Incorporates an integral relief valve on second stage.
  • Unique bonnet vent profile minimises freezing over of vents when properly installed.
  • Compact design saves space allowing for easy installation – especially under container hoods with collars.
  • Pre-tapped & plugged test point outlets 1/8” female NPT on both 1st stage and second stage outlet.
  • Plugs can be removed with a 3/16” hex (Allen) wrench.
  • Select brown finish.
Notes:

Images are representative of the type of regulator and are not necessarily the actual kit described.

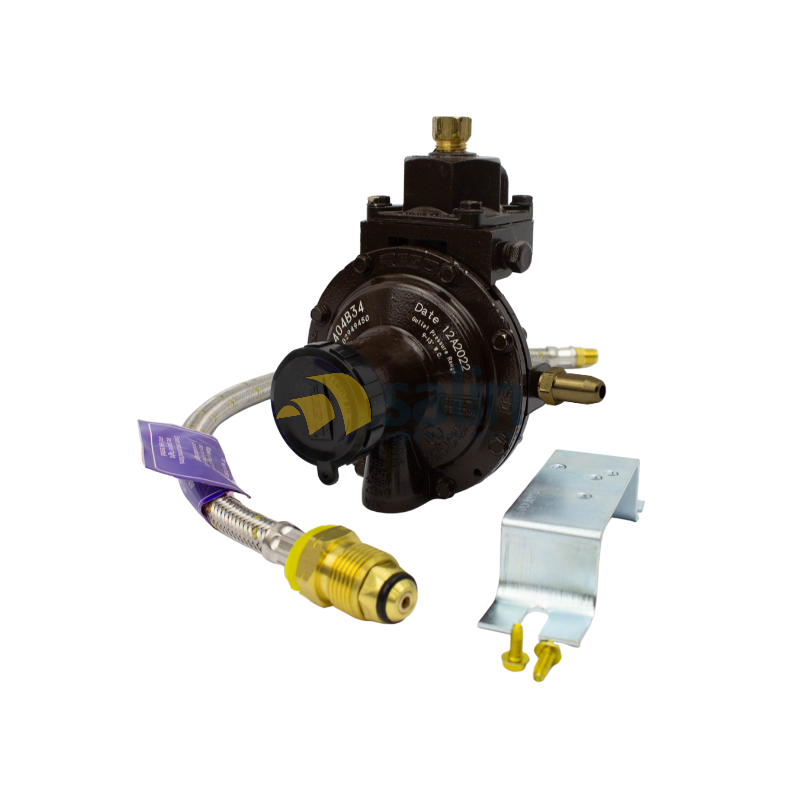

The main picture shows a single bottle kit whilst the second photo shows a representation of the type of pigtail included.
