This is a replacement rego twinstage reg 450mj propane tank adapter fl p/ta.

SALIN is a leading Australian appliance spare parts distributor specializing in REGO PRODUCTS appliances. We take pride in our ability to bring hard-to-find REGO PRODUCTS spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our REGO PRODUCTS range is genuine.

TECHNICAL SHEET
TitleRego TwinStage Reg 450MJ Propane Tank Adapter FL P/TA for LPG CARAVAN SHOP RESTUARANT
BrandRegO Products
Notes

REGO™ Twin Stage Regulator kit 450MJ/h 1/2″ outlet, w/ manual changeover valve and 2x flexible pigtail.

Description:

Kit comes with:

  • REGO™ twin stage regulator, guaranteed 450MJ/h @ 2.75kPa
  • Manual changeover (MCO) 2 bottle adapter
  • 600mm flexible stainless steel braided pigtail x2
  • Mounting bracket
  • Regulator to bracket bolts x2
Application:

This regulator is great for medium sized house installations, (<450MJ/h) it comes with all the bits to mount the regulator and connect to the cylinders (bracket mounting screws 3403SCW sold separately). Comes with flexible stainless steel braided pigtails (600mm) for connections to 9/45kg cylinders. It has a 1/2″ NPT female outlet, adapters to pipework sold separately.

Special Features:

This regulator has been tested for Australian conditions and has been rated to deliver a guaranteed 450MJ/h at 2.75kpa (11″ WC).

  • Includes a manual changeover valve for operating two cylinders or banks, one at a time.
  • Large vent helps prevent blockage.
  • 1st stage vent outlet is tapped ⅛” female NPT for vent piping.
  • Second stage vent outlet is tapped to ⅜”female NPT for vent piping.
  • With 15 PSIG inlet pressure, the regulator is designed to not pass more than 2 PSIG downstream with the seat disc removed (complies with over pressure protection requirements).
  • Incorporates an integral relief valve on second stage.
  • Unique bonnet vent profile minimises freezing over of vents when properly installed.
  • Compact design saves space allowing for easy installation – especially under container hoods with collars.
  • Pre-tapped & plugged test point outlets 1/8” female NPT on both 1st stage and second stage outlet.
  • Plugs can be removed with a 3/16” hex (Allen) wrench.
  • Select brown finish.
Notes:

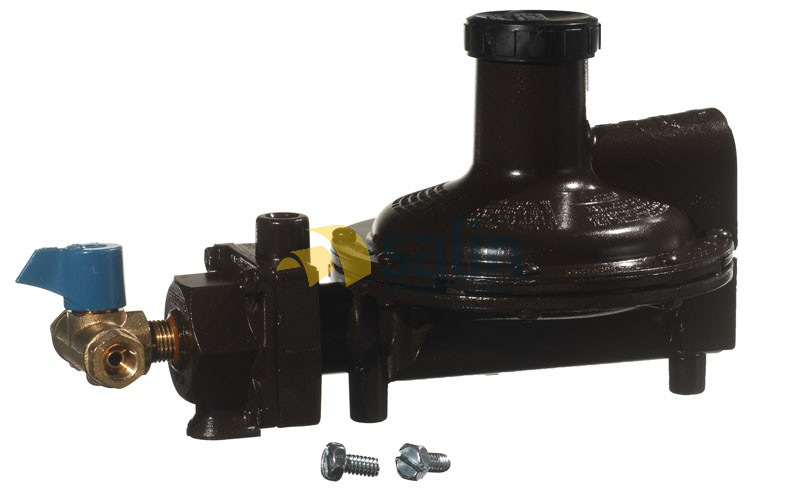

Images are representative of the type of regulator and are not necessarily the actual kit described.

Image is of a similar regulator with MCO valve attached, additional image of pigtails supplied with this kit, supplied bracket is also represented in additional image.

SKU NumberGMC_000907
