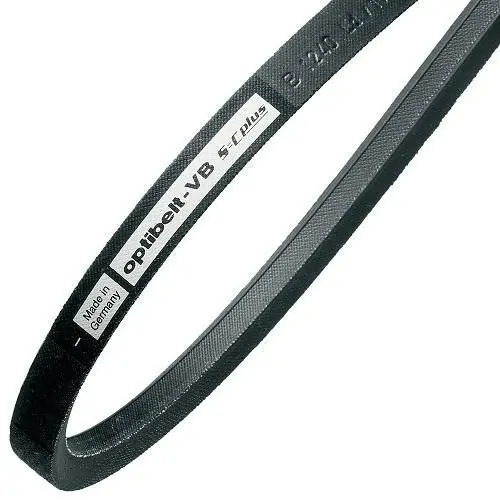

Miele Dryer Fan Drive Belt 8x400 V-Belt

Replacement fan drive V-belt, 8 mm × 400 mm, for Miele Professional tumble dryers. In Miele’s own spare parts list this belt sits in section 040 Drive Fan — it drives the blower that moves air through the drum, not the drum itself.

OEM Genuine. This part is made by the original equipment manufacturer - the same factory that produces it for the brand - and carries their part number. It is the same component, supplied without brand-name retail packaging, which is why it costs less than buying the boxed part through the brand.
Read this before you order — fan belt, not drum belt.
If your drum will not turn, this is not the belt you need: that is the long edged poly-V drum belt (5PJ 1880 / 5PJ 1900 / 5PJ 1915). This 8×400 V-belt drives the fan. A number of sellers list it as a “drum drive belt”, an “idler pulley belt” or even a washing-machine belt — that is incorrect, and it is the most common cause of a wrong order. Check your machine’s M-Nr. against the parts list if you are unsure.

Part Numbers

Current Miele number 5234362. It supersedes, and replaces, the earlier numbers in this chain:

4737390 → 4737391 → 5234360 → 5234361 → 5234362 (current)
Also written with a leading zero: 04737390, 04737391, 05234360, 05234361, 05234362.
Also written with an M prefix: M4737390, M4737391, M5234360, M5234361, M5234362.
EAN 4002515419786.

Which Belt Do You Need?

V-belt 8×400 — this part, 5234362. Fan / blower drive on PT5135C, PT5136 and PT7136 PLUS.
V-belt 8×335 — part 1710130 (supersedes 1944002, 1944003). Different machines: PT8251 to PT8333, and later-build T5206.
V-belt 8×375 — part 1914760.
Edged poly-V 5PJ 1880 / 5PJ 1900 / 5PJ 1915 — the drum drive belt. A different part entirely.

Fits These Models

PT5135CPT 5135 CPT5135PT 5135PT5136PT 5136PT7136 PLUSPT7136PLUSPT 7136 PLUSPT7136PT 7136

Brand: Miele and Miele Professional. Appliance type: tumble dryer / condenser dryer / vented dryer, semi-commercial and commercial. Fitment above is taken from Miele’s own published spare parts diagrams for PT5135C, PT5136 and PT7136 PLUS.

Symptoms Of A Failed Fan Belt

  • Drum turns but the clothes stay damp — no air is moving through the machine.
  • Drying cycles running far longer than they used to.
  • Squealing, chirping or slapping noise from the fan end of the machine.
  • Fan or blower not spinning when the drum is turning.
  • Over-temperature cut-outs tripping because hot air is not being carried away.
  • Belt found snapped, glazed, cracked or stretched off its pulley.

Specifications

Type: V-belt (trapezoidal profile) — not a ribbed / poly-V belt
Size: 8 mm top width × 400 mm length (Miele designation “8X400”)
Position: fan / blower drive, parts list section 040 Drive Fan
Quantity used: 1 per machine
Material: moulded rubber with tension cords

Fitting Notes

  1. Isolate the machine at the wall before removing any panel.
  2. Photograph the belt routing before you take the old belt off.
  3. Check the fan and motor pulleys for wear, and spin the blower by hand — a seized or dragging bearing will destroy a new belt in weeks.
  4. Clear the lint that has usually collected around the fan housing while you are in there.
  5. Check your machine’s M-Nr. against the Miele parts list if your model is not shown above.
  6. Commercial and semi-commercial machines should be worked on by a qualified technician.
