This is a MAGNETRON ALL-INLINE 1KW of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MAGNETRON ALL-INLINE 1KW
Notes These quality magnetrons will serve as replacements in a majority of ovens from many different manufacturers.  Manufacturer brand names stipulated on the label may change from listing. Due to global supply sources may change labelling and/or manufacturer of some listed magnetrons. Units of better or equivalent specifications will be supplied if certain brands become unavailable. Use branding as a guide only.  CHOOSING YOUR MAGNETRON The important points to observe are: (A) Is it an “Inverter” type magnetron See page 10-06 for Panasonic...  (B) Will it physically fit in place. Size & Mounting manner similar. Note: Air flow in relation to the power socket and the tags. (C) Do the tags have bolts or not. The bolts can be removed if necessary.  (D) After determining the physically same unit, you may find more than one similar to your magnetron, then: (E) Compare the P/No listed with each. If missing or not listed, don’t fret! Just use the most similar magnetron fitting the criteria listed above. (F) Then pick your wattage...  WATTAGE Wattage output is determined by the oven’s internal circuitry such as the transformer voltages, capacitor values, etc, not necessarily just the magnetron.  A Higher Wattage Magnetron Can Be Used In A Lower Wattage Oven Safely.  Measurements are outer dimensions or centre hole/stud distances measured in millimetres. +/- 5mm  Again check the part numbers and dimensions as your best guide for selecting your replacement magnetron.  SERVICE TECHNICIANS ONLY THIS IS NOT A HOBBY! Please beware of what you are doing because inside microwaves have LETHAL voltages, even when the power is disconnected.  LETHAL VOLTAGES INSIDE There is a rather large capacitor inside that stores thousands of volts. You should short this out to remove any residual charge that may harm you.  QUALIFIED PERSONAL ONLY Know what you are doing!  INSTRUCTIONS See MAN-MICRO Tags are inline with the air vent & power socket. Referred to as All-In-Line. A higher wattage unit can be used safely in a Lower power oven. Brands supplied may change. Diagrams may differ slightly.

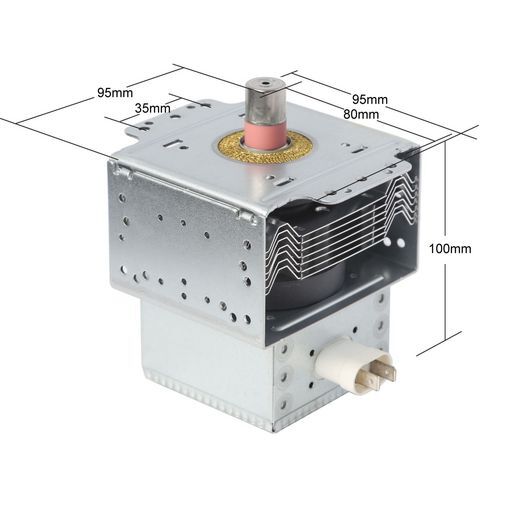

Size 80x95x100mm
Freq. 2460MHz
Watt 1000 (1KW)
FV 3.15V
PAV 4350V
PAI 330mA
Original Part No 2M248H, 2M248H-B, 6324W1A001N, 6324W1A001K
Manufacturer Daichi
SKU No WES_MAG2481_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN MAG2481
SKU WES_MAG2481_1_3
Brand Daichi
