Samsung Washing Machine Drum Bearing & Seal Kit – 6205ZZ / 6206ZZ

Complete drum bearing and seal kit for Samsung front loading washing machines, built around quality metal-shielded deep-groove bearings. Fit this kit when the machine roars or rumbles on spin, the drum has play when you rock it by hand, or you are finding rusty water or black grease marks on the washing — all signs the rear drum bearings and tub seal have failed.

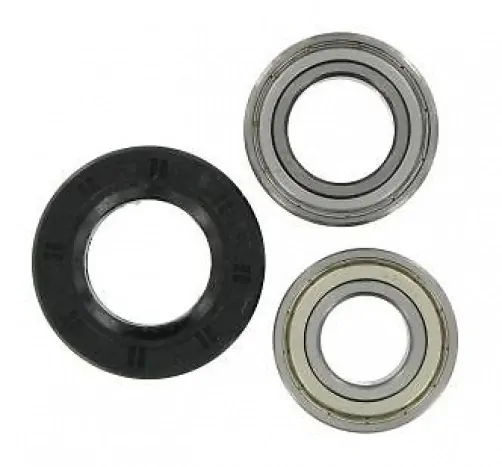

What is in the kit

⚠ Important — Samsung uses two different bearing sets

Samsung front loaders are built with two different bearing combinations depending on the drum and motor fitted. This kit is the 6205 / 6206 set. Larger machines use a 6206 / 6207 set, and the two are not interchangeable. Please check your full model code against the list below, or send it to us and we will confirm which kit you need before you order. Fitting the wrong set means stripping the machine twice.

Fits these Samsung models

WD806U4SAGD, WF70F5E0W4W, WF70F5E0Z4W, WF70F5E2Q4W, WF70F5E2W4W, WF70F5E2W4X, WF70F5E3W4W, WF70F5E5P4W, WF70F5E5Q4W, WF70F5E5U4X, WF70F5E5W4W, WF70F5E5W4X, WF70F5EBW4W, WF70F5ECQ4W, WF70F5EDW4X, WF7AF5E3P4W, WF80F5E0N4W, WF80F5E0W4W, WF80F5E2W4W, WF80F5E2W4X, WF80F5E3U4W, WF80F5E5U2W, WF80F5E5U4W, WF80F5E5U4X, WF80F5E5W4W, WF80F5EBP4W, WF80F5EBW4W, WF80F5ECW4W, WF80F5EDW4X, WF8EF5E0W4W, WF90F5E3U4W, WF90F5E5U, WF90F5E5U4W, WF90F5E5U4X, WF90F5EBU4W, WF91F5EBP4W, WF9EF5E3U4W, WW70J3483KW, WW70J3483KW1, WW70J5355FX, WW70J5355MW, WW70J5555DA, WW70J5555DW, WW70J5555EW, WW70J5555EX, WW70J5555FC, WW70J5555FW, WW70J5555FX, WW70J5555MW, WW70K5410UW, WW70K5410UX, WW70K5410WW, WW70K5413UW, WW70K5413UX, WW70K5413WW, WW7EK44205W, WW80J3483KW, WW80J34D0KW, WW80J5355MW, WW80J5455DW, WW80J5455MW, WW80J5456FX, WW80J5525EW, WW80J5535FW, WW80J5555DA, WW80J5555DW, WW80J5555EW, WW80J5555EX, WW80J5555FA, WW80J5555FC, WW80J5555FW, WW80J5555FX, WW80J5555MW, WW80J5556FX, WW80J5556MW, WW80J6400CW, WW80J6410CW, WW80J6410CX, WW80K5400UW, WW80K5410UW, WW80K5410UX, WW80K5410WW, WW80K5413UW, WW80K5413UX, WW80K5413WW, WW80K6414QW, WW80K6414QX, WW80TA046AE, WW80TA046AX, WW80TA046TH, WW80T534DAN, WW80T534DAW, WW80T554DAN, WW80T684DLH/S1, WW90J5426DW, WW90J5455FW, WW90J5455MW, WW90J5456DW, WW90J5456FC, WW90J5456FW, WW90J5456FX, WW90J5456MA, WW90J5456MW, WW90J6410CW, WW90J6410CX, WW90J6413EW, WW90K44305W, WW90K4430YW, WW90K4437YW, WW90K5410UW, WW90K5410UX, WW90K5410WW, WW90K5413UW, WW90K5413UX, WW90K6410QW, WW90K6410QX, WW90K6414QW, WW90K6414QX, WW90T534DAN, WW90T534DAW, WW90T554DAN, WW90T554DAW, WW90TA046AE, WW90TA046AX

If your model is not on the list, send us the full model code from the sticker inside the door or on the back panel and we will confirm the correct kit.

Fitting notes

• Replace both bearings and the seal together — fitting a new bearing against a worn seal will destroy it again within months.
• Check the drum shaft for scoring before reassembly. A scored shaft will chew through a new seal.
• Grease the seal lip on assembly.
• This is a workshop-level repair on most Samsung front loaders — the outer tub usually has to come out and, on welded tubs, be split. If you are not confident, have a technician quote the job first: on older machines the repair can cost more than the machine is worth.

Why buy from Salin

Salin Appliance Spares is an Australian owned and operated appliance spare parts distributor. Our warehouse and sales office is in Auburn, NSW, and we ship Australia wide. Call (02) 9749 2488 or email [email protected] if you need help identifying a part.
