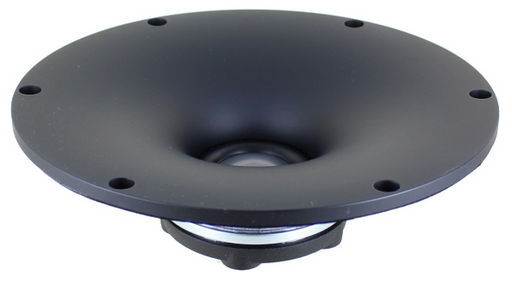

SATORI 1¼ DOME TWEETER BERYLLIUM NEO WITH 170MM WAVE GUIDE
SATORI 1¼ DOME TWEETER BERYLLIUM NEO WITH 170MM WAVE GUI
SKU code: WES_TW29BNWG-4_1
This is a SATORI 1¼ DOME TWEETER BERYLLIUM NEO WITH 170MM WAVE GUIDE of brand Satori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ DOME TWEETER BERYLLIUM NEO WITH 170MM WAVE GUIDE |
| Notes | Tweeter with 29mm Beryllium dome, neodymium motor, aluminium waveguide, with chamber. Beryllium is known for its open and spatial sound, often described as holographic. The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing a experience unlike all other dome materials.Beryllium dome for non-resonant high frequency extensionDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftHigh saturation neodymium motor system with T-shaped pole piece for lower distortionNon-reflective cast aluminium chamber with optimised damping for improved dynamicsShallow flow optimised magnet structure for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency for extended rangeSolid aluminium waveguideControlled directivityAdaptor ring for bolt-less mounting to driver |
| Description | 29mm Beryllium dome, neodymium motor, aluminium waveguide, with chamber |
| Coil | 29mmØ |
| Depth | 46.7mm |
| Fs | 700Hz |
| Impedance | 4Ω (Re 3.0Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 1.14' |
| Le | 0.02mH |
| Mag. | 0.1kg |
| Manufacturer | Satori |
| Mms | 0.46g |
| Power | 80Wrms |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 80W |
| Qes | 0.6 |
| Qms | 2.1 |
| Qts | 0.46 |
| QTY | 1 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Sens. | 97dB |
| Series | Satori |
| Size | 1.17' |
| Type | Dome Tweeter |
| Width | 170mmØ |
| Zn | 0.02mH |
| eBook | Link to eBook |
| Flux (lm) | 1.5T |
| Xmax | 1mm |
| Bl | 3.1Tm |
| Page | 8 |
| SKU No | WES_TW29BNWG-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | TW29BNWG-4 |
| SKU | WES_TW29BNWG-4_1 |
| Brand | Satori |
