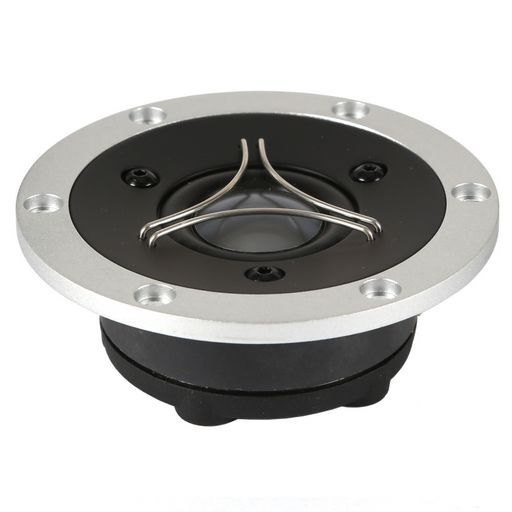

SATORI 1¼ DOME TWEETER BERYLLIUM
29MMØ BERYLLIUM DOME SILVER RIM
SKU code: WES_TW29B_1
This is a SATORI 1¼ DOME TWEETER BERYLLIUM of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ DOME TWEETER BERYLLIUM |
| Notes | 29MMØ BERYLLIUM DOME SILVER RIM Beryllium is known for its open and spatial sound, often described as holographic. The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. While all dome materials have a different tonal and spatial presentation, Beryllium makes a real positive difference, providing an experience unlike all other dome materials.Beryllium dome for non-resonant high frequency extensionTwo part aluminium faceplate with integrated mechanical decouplingDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftNon-reflective cast aluminium chamber with optimized damping for improved dynamicsCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency for extended range |
| Description | Satori Tweeter Beryllium Silver |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 80Wrms |
| Coil | 29mmØ |
| Width | 103.8mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 32.3mm |
| Mag. | 0.22kg |
| Sens. | 92dB |
| Re | 3.0Ω |
| Qms | 2.9 |
| Qes | 1.3 |
| Qts | 0.9 |
| Sd | 9.6cm² |
| Fs | 600Hz |
| Mms | 0.46g |
| Zn | 0.02mH |
| Le | 0.02mH |
| Diam. | 25mmØ |
| Series | Satori |
| Manufacturer | SB Acoustics |
| Materials | Beryllium |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| Colour | Silver Rim |
| Page | 9 |
| Prms | 80W |
| Bl | 2Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Sold As | Single |
| SKU No | WES_TW29B_1 |
