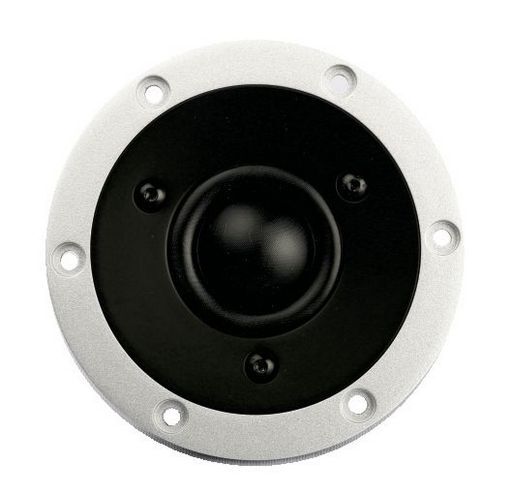

SATORI 1¼ DOME TWEETER TEXTILE NEO
SATORI 1¼ DOME TWEETER TEXTILE NEO
SKU code: WES_TW29DN_1
This is a SATORI 1¼ DOME TWEETER TEXTILE NEO of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ DOME TWEETER TEXTILE NEO |
| Notes | Satori large-surround dome tweeter with Neodymium magnets for high-output and two part aluminium faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift. High saturation ferrite motor system with T-shaped pole piece for lower distortion. Non-reflective cast aluminium chamber with optimized damping for improved dynamics. Shallow flow optimized magnet structure for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency for extended range.Large surround dome for increased acoustic output.Dual balanced compression chamber for improved dynamics.Dual copper caps for absolute minimum voice coil inductance and minimum phase shift.Two part aluminium faceplate with integrated mechanical decoupling.High saturation neodymium motor system with T-shaped pole piece for lower distortion.Non-reflective cast aluminium chamber with optimized damping for improved dynamics.Shallow flow optimized magnet structure for optimum coupling to rear chamber.CCAW voice coil for low moving mass.Long life silver lead wires.Low resonance frequency for extended range. |
| Description | Satori Tweeter Dome Neo Silver |
| Impedance | 4Ω (Re 3.0Ω) |
| Fs | 650Hz |
| Sens. | 96dB |
| Power | 80Wrms |
| Qms | 1.66 |
| Qes | 0.57 |
| Qts | 0.43 |
| Coil | 29mmØ |
| Depth | 21.7mm |
| Diam. | 25mmØ |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.10kg |
| Manufacturer | SB Acoustics |
| Materials | Textile Dome Neo |
| Mms | 0.45g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Series | Satori |
| Size | 1' |
| Type | Tweeter |
| Width | 103.8mmØ |
| Zn | 0.02mH |
| Colour | Silver Rim |
| Bl | 3.1Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.5T |
| eBook | Link to eBook |
| Page | 10 |
| Sold As | Single |
| SKU No | WES_TW29DN_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | TW29DN |
| SKU | WES_TW29DN_1 |
| Brand | SB Acoustics |
