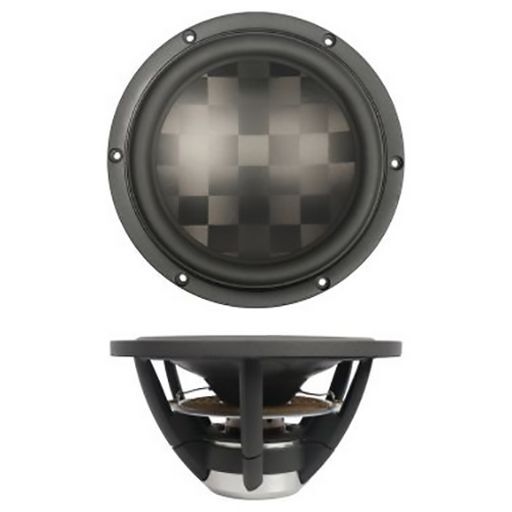

This is a SATORI 7½ MID-WOOFER - TEXTREME of brand Satori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SATORI 7½ MID-WOOFER - TEXTREME
Notes New in the premium SB Acoustic Satori line is the premium 7½″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). Available in 4 ohm and 8 ohm models.Advanced TeXtreme® coneVented aerodynamic cast aluminium chassisSoft low damping rubber surroundAdvanced BIMAX spiderPowerful optimized low distortion neodymium motor systemExtended copper sleeve on pole pieceNon-conducting fibre glass voice coil formerVented pole piece and voice coilLight weight CCAW voice coilLong life silver lead wires
Description39mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Coil39mmØ
Depth89.2mm
Fs32Hz
Impedance4Ω (Re 3.4Ω)
Impedance (Ohm)4 ohm
Inch7.5'
Le0.14mH
Mag.0.15kg
ManufacturerSatori
Mms16.2g
Power70Wrms
Power (RMS)51-100 Watt
Price Typeeach
Prms70W
Qes0.28
Qms5.43
Qts0.27
QTY1
Re3.4Ω
Sd158cm²
Sens.93dB
SeriesSatori
Size7.5'
TypeWoofer
Vas53.2L
Width187mmØ
Zn0.14mH
eBookLink to eBook
Rms0.6kg/s
Flux (lm)1.1T
Cms1.52mm/N
Page13
Xmax13.6mm
Bl6.3Tm
SKU NoWES_MW19TX-4_1
