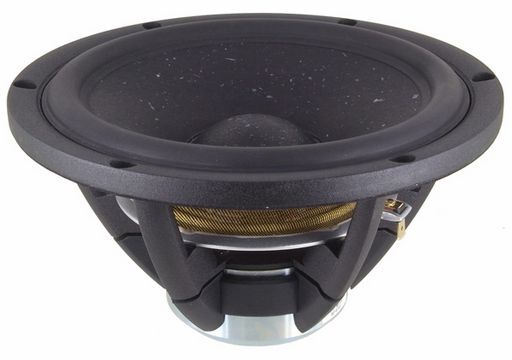

SATORI 7.5 MID-WOOFER
SB ACOUSTICS
SKU code: WES_MW19P-4_1
This is a SATORI 7.5 MID-WOOFER of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 7.5 MID-WOOFER |
| Notes | SB ACOUSTICS Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.Vented aerodynamic cast aluminium chassis for optimum strength and low compressionProprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-houseSoft low damping rubber surround for optimum transient responseAdvanced BIMAX spider for improved linearityPowerful optimized low distortion neodymium motor systemNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and reduced distortionCCAW voice coil for reduced moving massLong life silver lead wires attached 180° apart for improved stabilityVented pole piece for reduced compressionHigh piston to chassis diameter ratioGasket and bolt hole protrusions for reduced coupling to speaker cabinet |
| Description | 7.5' Satori mid-woofer |
| Type | Mid-Woofer |
| Size | 7.5' |
| Price Type | each |
| Power | 70Wrms |
| Coil | 39mmØ |
| Width | 187mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.4Ω) |
| Depth | 90.2mm |
| Mag. | 0.15kg |
| Sens. | 91.5dB |
| Re | 3.4Ω |
| Qms | 4.11 |
| Qes | 0.3 |
| Qts | 0.28 |
| Vas | 48L |
| Sd | 158cm² |
| Cms | 1.35mm/N |
| Fs | 32Hz |
| Mms | 18.4g |
| Zn | 0.14mH |
| Le | 0.14mH |
| Rms | 0.9kg/s |
| Diam. | 190mmØ |
| Series | Satori |
| Manufacturer | SB Acoustics |
| Materials | Papyrus |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 7.5 |
| Colour | Black Cone |
| Bl | 6.5Tm |
| Xmax | 13.6mm |
| Flux (lm) | 1.1T |
| eBook | Link to eBook |
| Page | 13 |
| Prms | 70W |
| Sold As | Single |
| SKU No | WES_MW19P-4_1 |
