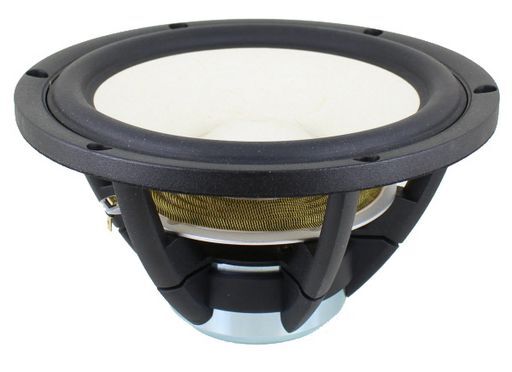

SATORI 7.5 MID-WOOFER WHITE
SB ACOUSTICS
SKU code: WES_MW19PNW-4_1
This is a SATORI 7.5 MID-WOOFER WHITE of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 7.5 MID-WOOFER WHITE |
| Notes | SB ACOUSTICS Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.Vented aerodynamic cast aluminium chassis for optimum strength and low compressionProprietary cone material with EGYPTIAN PAPYRUSTM fibres made in-houseSoft low damping rubber surround for optimum transient responseAdvanced BIMAX spider for improved linearityPowerful optimized low distortion neodymium motor systemNon-conducting fibre glass voice coil formerfor minimum dampingExtended copper sleeve on pole piece for lowinductance and reduced distortionCCAW voice coil for reduced moving massLong life silver lead wires attached 180° apartfor improved stabilityVented pole piece for reduced compressionHigh piston to chassis diameter ratioGasket and bolt hole protrusions for reducedcoupling to speaker cabinet |
| Description | 7.5' Satori mid-woofer White |
| Type | Mid-Woofer |
| Size | 7.5' |
| Price Type | each |
| Power | 70Wrms |
| Coil | 39mmØ |
| Width | 187mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.4Ω) |
| Depth | 90.2mm |
| Mag. | 0.15kg |
| Sens. | 91dB |
| Re | 3.4Ω |
| Qms | 4.02 |
| Qes | 0.22 |
| Qts | 0.21 |
| Vas | 78.1L |
| Sd | 158cm² |
| Cms | 2.22mm/N |
| Fs | 32Hz |
| Mms | 16.7g |
| Zn | 0.14mH |
| Le | 0.14mH |
| Rms | 0.7kg/s |
| Diam. | 191mmØ |
| Series | Satori |
| Manufacturer | SB Acoustics |
| Materials | Papyrus White |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 7.5 |
| Colour | White Cone |
| Bl | 6.5Tm |
| Xmax | 13.6mm |
| Flux (lm) | 1.1T |
| eBook | Link to eBook |
| Page | 13 |
| Prms | 70W |
| Sold As | Single |
| SKU No | WES_MW19PNW-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | MW19PNW-4 |
| SKU | WES_MW19PNW-4_1 |
| Brand | SB Acoustics |
