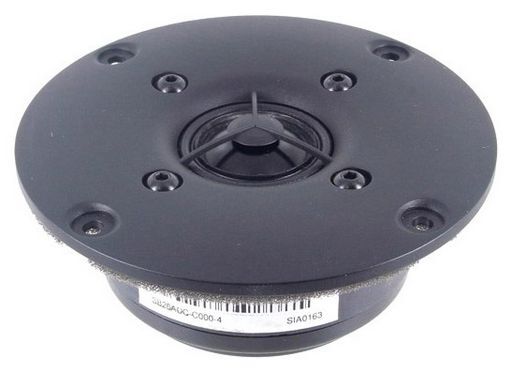

SB ACOUSTICS 1 DOME TWEETER - ADC
ALUMINIUM DOME - TEXTILE SURROUND - PHASE SHIELD
SKU code: WES_SB26ADC-C000-4_1
This is a SB ACOUSTICS 1 DOME TWEETER - ADC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 DOME TWEETER - ADC |
| Notes | ALUMINIUM DOME - TEXTILE SURROUND - PHASE SHIELD The dome and surround has been designed to push the “break-up” to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up. Phase optimized diaphragm design for coherent high frequency radiation. Copper cap and saturation controlled motor system for low distortion. Non-reflective rear chamber with optimized damping and flow optimized vented pole piece. CCAW voice coil. Silver lead wires. Low resonance frequency.Phase optimized diaphragm design for coherent high frequency radiationCopper cap for reduced voice coil inductance and minimum phase shiftSaturation controlled motor system for low distortionNon-reflective rear chamber with optimized damping for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
| Description | Dome |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 120Wrms |
| Coil | 25.4mmØ |
| Width | 100mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.2Ω) |
| Depth | 35mm |
| Mag. | 0.22kg |
| Sens. | 90dB |
| Re | 3.2Ω |
| Qms | 2.7 |
| Qes | 1.88 |
| Qts | 1.11 |
| Sd | 6.2cm² |
| Fs | 680Hz |
| Mms | 0.38g |
| Zn | 0.04mH |
| Le | 0.04mH |
| Diam. | 25mmØ |
| Series | Dome Tweeter |
| Manufacturer | SB Acoustics |
| Materials | Aluminium |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 101-150 Watt |
| Inch | 1 |
| Bl | 1.6Tm |
| Xmax | 1.2mm |
| Flux (lm) | 1.15T |
| eBook | Link to eBook |
| Prms | 120W |
| Page | 18 |
| SKU No | WES_SB26ADC-C000-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB26ADC-C000-4 |
| SKU | WES_SB26ADC-C000-4_1 |
| Brand | SB Acoustics |
