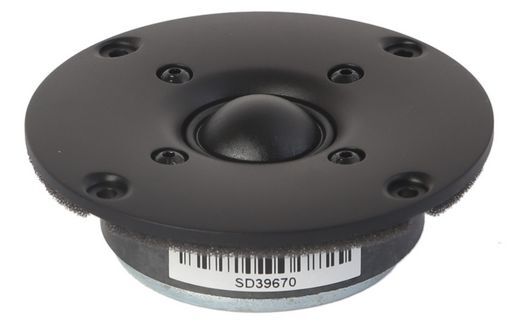

SB ACOUSTICS 1 DOME TWEETER - ST
25MMØ SOFT DOME TEXTILE - 104MMØ FACE PLATE
SKU code: WES_SB26ST-C000-5_1
This is a SB ACOUSTICS 1 DOME TWEETER - ST of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 DOME TWEETER - ST |
| Notes | 25MMØ SOFT DOME TEXTILE - 104MMØ FACE PLATE Optimized damping in pole cavity to eliminate internal reflection. Fine weave soft fabric dome for smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.Optimized damping in pole cavity to eliminate internal reflectionFine weave soft fabric dome for smooth frequency responseSaturation controlled motor system for reduced distortionCCAW voice coil for low moving mass Long life silver lead wires |
| Description | Dome |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 80Wrms |
| Coil | 25.4mmØ |
| Width | 100mmØ |
| QTY | 1 |
| Impedance | 5Ω (Re 4.4Ω) |
| Depth | 27mm |
| Mag. | 0.22kg |
| Sens. | 91dB |
| Re | 4.4Ω |
| Qms | 5 |
| Qes | 1.64 |
| Qts | 1.24 |
| Sd | 6.2cm² |
| Fs | 870Hz |
| Mms | 0.33g |
| Zn | 0.07mH |
| Le | 0.07mH |
| Diam. | 25mmØ |
| Series | Dome Tweeter |
| Manufacturer | SB Acoustics |
| Materials | Textile |
| Impedance (Ohm) | 5 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| Bl | 2.2Tm |
| Xmax | 1.2mm |
| Flux (lm) | 1.23T |
| eBook | Link to eBook |
| Page | 17 |
| Prms | 80W |
| Brand. | SB Acoustics |
| SKU No | WES_SB26ST-C000-5_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB26ST-C000-5 |
| SKU | WES_SB26ST-C000-5_1 |
| Brand | SB Acoustics |
