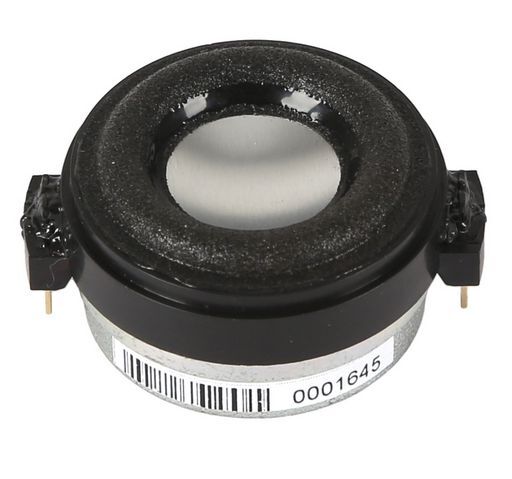

SB ACOUSTICS 1 FULL RANGE - WBAC
SUPER-COMPACT FULL RANGE ALUMINIUM CONE
SKU code: WES_SB36WBAC21-8_1
This is a SB ACOUSTICS 1 FULL RANGE - WBAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 FULL RANGE - WBAC |
| Notes | SUPER-COMPACT FULL RANGE ALUMINIUM CONE Long stroke low damping surround. Vented low compression design. Resonance and break-up control. Low resonance frequency. Prepared for rear mounting. Long life silver lead wires.Long stroke low damping surroundVented low compression designResonance and break-up controlLow resonance frequencyPrepared for rear mountingLong life silver lead wires |
| Description | - |
| Type | Full Range |
| Size | 1' |
| Price Type | each |
| Power | 5Wrms |
| Coil | 20.4mmØ |
| Width | 36mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 5.8Ω) |
| Depth | 6.5mm |
| Mag. | 0.01kg |
| Sens. | 75dB |
| Re | 5.8Ω |
| Qms | 1.75 |
| Qes | 0.92 |
| Qts | 0.61 |
| Vas | 0.035L |
| Sd | 4.2cm² |
| Cms | 1.39mm/N |
| Fs | 160Hz |
| Mms | 0.7g |
| Zn | 0.13mH |
| Le | 0.13mH |
| Rms | 0.4kg/s |
| Diam. | 25mmØ |
| Series | Alu-Cones |
| Manufacturer | SB Acoustics |
| Materials | Aluminium |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 1 |
| Bl | 2.1Tm |
| Xmax | 3.5mm |
| Flux (lm) | 0.85T |
| eBook | Link to eBook |
| Page | 20 |
| Prms | 5W |
| SKU No | WES_SB36WBAC21-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB36WBAC21-8 |
| SKU | WES_SB36WBAC21-8_1 |
| Brand | SB Acoustics |
