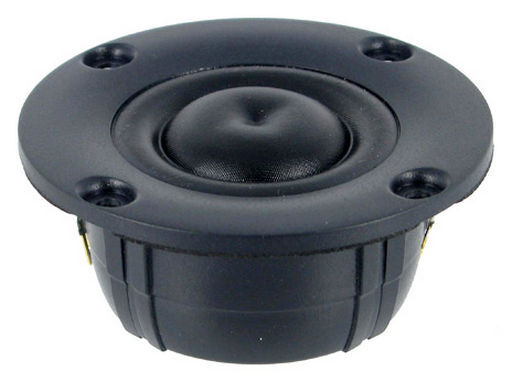

SB ACOUSTICS 1¼ RING TWEETER - RDNC
29MMØ RING DOME - NEODYMIUM - 72MMØ FACE PLATE
SKU code: WES_SB29RDNC-C000-4_1
This is a SB ACOUSTICS 1¼ RING TWEETER - RDNC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1¼ RING TWEETER - RDNC |
| Notes | 29MMØ RING DOME - NEODYMIUM - 72MMØ FACE PLATE Non-resonant diaphragm design for minimum high frequency break-up. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency. Copper cap on pole piece for reduced voice coil inductance and minimum phase shift. Inherently shielded neodymium motor system. Internal pressure equalization and flow resistor for non-resonant coupling of cavities. Compact design.Non-resonant diaphragm design for minimum high frequency break-upCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequencyCopper cap on pole piece for reduced voice coil inductance and minimum phase shiftInherently shielded neodymium motor systemInternal pressure equalization and flow resistor for non-resonant coupling of cavitiesCompact design |
| Description | Ring |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 29mmØ |
| Width | 72mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 31mm |
| Mag. | 0.031kg |
| Sens. | 94dB |
| Re | 3.0Ω |
| Qms | 1.2 |
| Qes | 0.72 |
| Qts | 0.45 |
| Sd | 9.6cm² |
| Fs | 680Hz |
| Mms | 0.45g |
| Zn | 0.05mH |
| Le | 0.05mH |
| Diam. | 25mmØ |
| Series | Ring Dome |
| Manufacturer | SB Acoustics |
| Materials | Textile |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| Bl | 2.6Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.2T |
| eBook | Link to eBook |
| Prms | 100W |
| Page | 16 |
| SKU No | WES_SB29RDNC-C000-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB29RDNC-C000-4 |
| SKU | WES_SB29RDNC-C000-4_1 |
| Brand | SB Acoustics |
