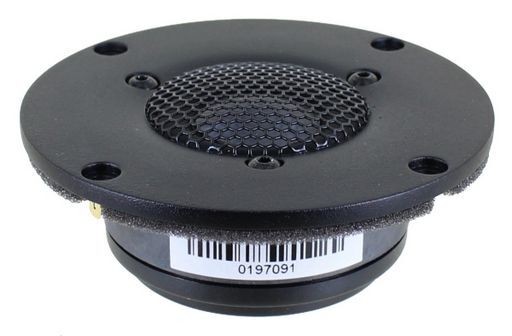

SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME BAC
BERYLLIUM IS SEVEN TIMES MORE RIGID THAN TITANIUM
SKU code: WES_SB29BAC-C000-4_1
This is a SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME BAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME BAC |
| Notes | BERYLLIUM IS SEVEN TIMES MORE RIGID THAN TITANIUM Optimized rear chamber and vented pole piece. High output above 92 dB. Strong response well above 20kHz. Cast aluminium faceplate. Copper cap for reduced voice coil inductance and minimum phase shift. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. Fine weave soft fabric dome for smooth frequency response. Saturation controlled motor system for low distortion. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance Fs.Beryllium is incredibly rigid (seven times more rigid than Titanium or Aluminium) and is considered one of the best materials in the world for tweeter domes. Extended frequency response past 20 kHz provides exceptional airiness and spatial quality with superb transients and micro-instrumentation. The result is a subtle, detailed, dynamic tweeter with fast response but without the typical harshness of metal domes that can cause listener fatigue. With low resonance, very high output, excellent power handling and protective grille, this tweeter will work equally well for home hi-fi use or for high-end autosound applications.Beryllium dome for non-resonant high frequency extensionLarge surround dome for increased acoustic outputCopper cap for reduced voice coil inductance and minimum phase shiftSaturation controlled motor system for low distortionDual balanced compression chambers for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberNon-reflective rear chamber with optimized damping for improved dynamicsCCAW voice coil for low moving massLong life flexible lead wiresCast aluminium faceplateLow resonance frequency |
| Description | Dome |
| Impedance | 4Ω (Re 3.0Ω) |
| Fs | 600Hz |
| Sens. | 92.5dB |
| Power | 80Wrms |
| Qms | 2.1 |
| Qes | 0.9 |
| Qts | 0.64 |
| Coil | 29mmØ |
| Depth | 33mm |
| Diam. | 25mmØ |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.05mH |
| Mag. | 0.22kg |
| Manufacturer | SB Acoustics |
| Materials | Beryllium |
| Mms | 0.46g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Series | Dome Tweeter |
| Size | 1' |
| Type | Tweeter |
| Width | 104mmØ |
| Zn | 0.05mH |
| Bl | 2.4Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.1T |
| eBook | Link to eBook |
| Page | 15 |
| SKU No | WES_SB29BAC-C000-4_1 |
