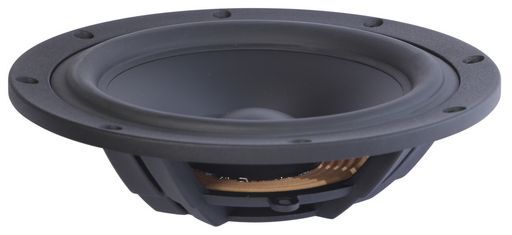

SB ACOUSTICS 10 PASSIVE RADIATOR - NRX
SUB-WOOFER BOX - ZERO PORT OPTION
SKU code: WES_SB29NRX-00_1
This is a SB ACOUSTICS 10 PASSIVE RADIATOR - NRX of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 10 PASSIVE RADIATOR - NRX |
| Notes | SUB-WOOFER BOX - ZERO PORT OPTION This driver is built similar to the active woofer and is a good match to the SB29SWNRX-S75 10 subwoofer. In 0.75 to 1.0 cubic foot with that woofer you have an F3 of about 35Hz. It also mates well with the SB29NRX75-6 10 woofer. In 1.0 to 1.3 cubic foot, your F3 is 38Hz. Using a plate amp with a low frequency boost, you would go even lower. (see DW-50 for additional 50g weights).Hard paper cone for improved piston operation (made in-house)Cast aluminium chassis for optimum strength and identical SB29, NRX series woofer styleLow damping medium hardness rubber surround for improved dynamic linearity and mechanical stabilityMoving mass 455g. Includes screw to add more if required. |
| Description | - |
| Type | Passive |
| Size | 10' |
| Price Type | each |
| Power | Passive |
| Coil | - |
| Width | 290mmØ |
| QTY | 1 |
| Impedance | Passive |
| Depth | 79mm |
| Re | Passive |
| Qms | 10.8 |
| Vas | 66L |
| Sd | 312cm² |
| Cms | 0.48mm/N |
| Fs | 10.2Hz |
| Mms | 505g |
| Rms | 3kg/s |
| Diam. | 254mmØ |
| Series | Norex Cones |
| Manufacturer | SB Acoustics |
| Materials | Norex |
| Impedance (Ohm) | Passive |
| Power (RMS) | Passive |
| Inch | 10 |
| Xmax | 17mm |
| eBook | Link to eBook |
| Page | 33 |
| Prms | Passive |
| SKU No | WES_SB29NRX-00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB29NRX-00 |
| SKU | WES_SB29NRX-00_1 |
| Brand | SB Acoustics |
