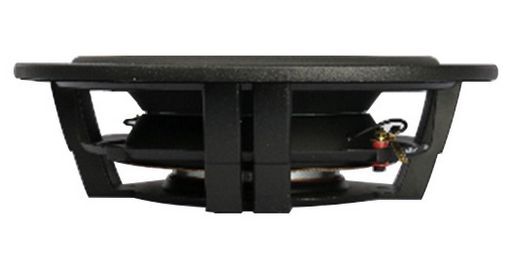

SB ACOUSTICS 10 SUB WOOFER - ALUMINIUM SHALLOW DBAC
NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET
SKU code: WES_SW26DBAC76-4_2
This is a SB ACOUSTICS 10 SUB WOOFER - ALUMINIUM SHALLOW DBAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 10 SUB WOOFER - ALUMINIUM SHALLOW DBAC |
| Notes | NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET Unique patented long through shallow design. Vented cast aluminium chassis for optimum strength and low compression. Dual rigid aluminium cone structure. Non-conducting fibre glass coil former for minimum damping. Shorting ring in motor system for reduced distortion. 3 copper voice coil for improved power handling. Long life insulated silver lead wires. Powerful neodymium motor system.Unique patented long through shallow designVented cast aluminium chassis for optimum strength and low compressionDual rigid aluminium cone structureNon-conducting fiber glass coil former for minimum dampingShorting ring in motor system for reduced distortion3 copper voice coil for improved power handlingLong life insulated silver lead wiresPowerful neodymium motor system |
| Description | - |
| Type | Subwoofer |
| Size | 10' |
| Price Type | each |
| Power | 200Wrms |
| Coil | 75.5mmØ |
| Width | 290mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.2Ω) |
| Depth | 70.5mm |
| Mag. | 0.28kg |
| Sens. | 86dB |
| Re | 3.2Ω |
| Qms | 4.5 |
| Qes | 0.51 |
| Qts | 0.46 |
| Vas | 54L |
| Sd | 312cm² |
| Cms | 0.39mm/N |
| Fs | 22Hz |
| Mms | 134g |
| Rms | 4.1kg/s |
| Diam. | 254mmØ |
| Manufacturer | SB Acoustics |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 151-200 Watt |
| Inch | 10 |
| Bl | 10.8Tm |
| Xmax | 24mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Prms | 200W |
| Page | 34 |
| Series | Alu-Cones |
| Materials | Aluminium |
| SKU No | WES_SW26DBAC76-4_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SW26DBAC76-4 |
| SKU | WES_SW26DBAC76-4_2 |
| Brand | SB Acoustics |
