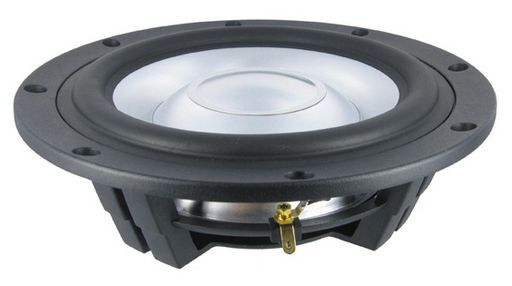

SB ACOUSTICS 10 SUB WOOFER - DAC ALUMINIUM SHALLOW
NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET
SKU code: WES_SW26DAC76-8_1
This is a SB ACOUSTICS 10 SUB WOOFER - DAC ALUMINIUM SHALLOW of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 10 SUB WOOFER - DAC ALUMINIUM SHALLOW |
| Notes | NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET Very shallow design of only 3” allows installation in unique enclosures. Automotive, wall cavities, low-profile home audio for easily hidden box. Dual-mirrored aluminium motor design for a rigid strength high dB cone. Long-throw high exertion suspension built around a cast aluminium frame. Extra large 3” aluminium voice coil converts large amounts of power. Depth only 70mm.Unique patented long through shallow designVented cast aluminium chassis for optimum strength and low compressionDual rigid aluminium cone structureNon-conducting fiber glass coil former for minimum dampingShorting ring in motor system for reduced distortion3 copper voice coil for improved power handlingLong life insulated silver lead wiresPowerful neodymium motor system |
| Description | - |
| Type | Subwoofer |
| Size | 10' |
| Price Type | each |
| Power | 250Wrms |
| Coil | 75.5mmØ |
| Width | 290mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 6.4Ω) |
| Depth | 84.6mm |
| Mag. | 0.281kg |
| Sens. | 83dB |
| Re | 6.4Ω |
| Qms | 4.4 |
| Qes | 0.29 |
| Qts | 0.28 |
| Vas | 54L |
| Sd | 312cm² |
| Cms | 0.39mm/N |
| Fs | 19.5Hz |
| Mms | 172g |
| Rms | 4.8kg/s |
| Diam. | 254mmØ |
| Series | Alu-Cones |
| Manufacturer | SB Acoustics |
| Materials | Aluminium |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 200+ Watt |
| Inch | 10 |
| Bl | 21.4Tm |
| Xmax | 24mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Prms | 250W |
| Page | 34 |
| Brand. | SB Acoustics |
| SKU No | WES_SW26DAC76-8_1 |
