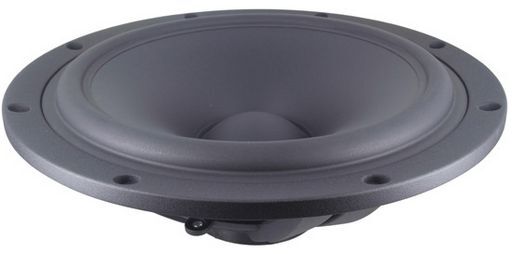

SB ACOUSTICS 12 PASSIVE RADIATOR - NRX
SUITS THE STYLE OF ANY NRX COATED DRIVER
SKU code: WES_SB34NRX-00_1
This is a SB ACOUSTICS 12 PASSIVE RADIATOR - NRX of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 12 PASSIVE RADIATOR - NRX |
| Notes | SUITS THE STYLE OF ANY NRX COATED DRIVER This passive radiator is a good match to the SB34SWNRX-S75. Hard paper cone for improved piston operation (made in-house) with a cast aluminium chassis for optimum strength and low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability. Easily adjustable moving mass for fine tuning. The disc weight (50g Included) is used to adjust the moving mass of the passive radiators. Uses an M8 bolt for mounting (see DW-50 for additional 50g weights).Hard paper cone for improved piston operation (made in-house)Cast aluminium chassis for optimum strengthLow damping medium hardness rubber surround for improved dynamic linearity and mechanical stabilityEasily adjustable moving mass This passive radiator is a good match to the SB Acoustics 12 Sub-Woofer SB34SWNRX-S75 In a 2.0 to 2.5 cubic foot box this combo will get down to 30Hz, ideal for Home Theatre in a large home. Adding a plate amplifier with a low frequency boost would push the F3 even lower. |
| Description | 12' Passive Radiator SBA |
| Cms | 0.5mm/N |
| Coil | - |
| Depth | 79.1mm |
| Diam. | 305mmØ |
| Fs | 8.7Hz |
| Impedance | Passive |
| Impedance (Ohm) | Passive |
| Inch | 12 |
| Le | - |
| Mag. | - |
| Manufacturer | SB Acoustics |
| Materials | Norex |
| Mms | 665g |
| Page | 21 |
| Power | Passive |
| Power (RMS) | Passive |
| Price Type | each |
| Prms | Passive |
| Qes | - |
| Qms | 12.1 |
| Qts | - |
| QTY | 1 |
| Re | Passive |
| Rms | 3kg/s |
| Sd | 508cm² |
| Sens. | - |
| Series | Norex Cones |
| Size | 12' |
| Type | Passive |
| Vas | 183L |
| Width | 346mmØ |
| Zn | Passive |
| Brand. | SB Acoustics |
| SKU No | WES_SB34NRX-00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB34NRX-00 |
| SKU | WES_SB34NRX-00_1 |
| Brand | SB Acoustics |
