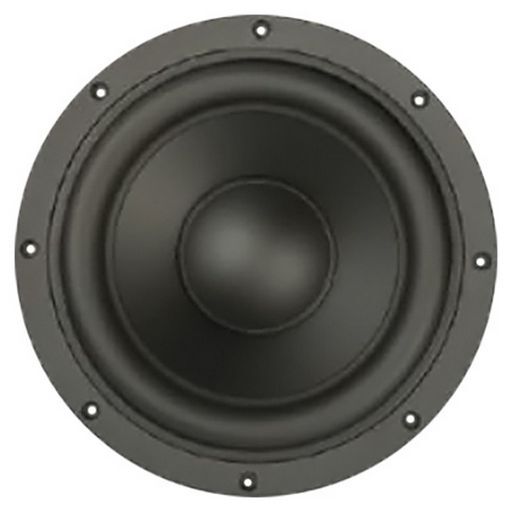

SB ACOUSTICS 12 SUB-WOOFER - SWPL
SUB-WOOFER NOREX PAPER CONE LONG STROKE
SKU code: WES_SB34SWPL76-4_1
This is a SB ACOUSTICS 12 SUB-WOOFER - SWPL of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 12 SUB-WOOFER - SWPL |
| Notes | SUB-WOOFER NOREX PAPER CONE LONG STROKE Long stroke design. Linear high stability suspension. Low damping rubber surround. 75mm copper voice coil. Non-conducting reinforced fibre glass coil former. Very stiff hard paper cone (made in-house). Vented cast aluminium chassis. Large vented motor system and vented coil former. Long life silver lead wires.Long stroke designLinear high stability suspensionLow damping rubber surround3’’ copper voice coilNon-conducting reinforced fibre glass coil formerVery stiff hard paper cone (made in-house)Vented cast aluminium chassisLarge vented motor system and vented coilformerLong life silver lead wires |
| Description | 12' Sub Woofer Driver SBA |
| Cms | 0.26mm/N |
| Coil | 76mmØ |
| Depth | 146.5mm |
| Diam. | 305mmØ |
| Fs | 19Hz |
| Impedance | 4O (Re 3.5O) |
| Impedance (Ohm) | 4 ohm |
| Inch | 12 |
| Le | 5.3mH |
| Mag. | 2.4kg |
| Manufacturer | SB Acoustics |
| Materials | Papyrus |
| Mms | 266g |
| Page | 22 |
| Power | 300Wrms |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Prms | 300W |
| Qes | 0.34 |
| Qms | 8.6 |
| Qts | 0.33 |
| QTY | 1 |
| Re | 3.5O |
| Rms | 3.7kg/s |
| Sd | 458cm² |
| Sens. | 85dB |
| Series | Long Stroke |
| Size | 12' |
| Type | Woofer |
| Vas | 78.5L |
| Width | 346mmØ |
| Zn | 4O |
| SKU No | WES_SB34SWPL76-4_1 |
