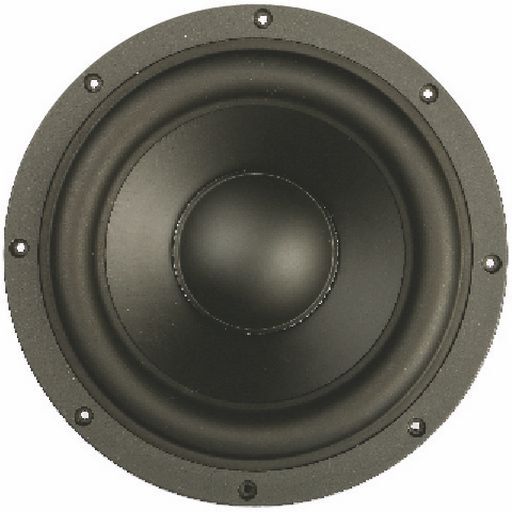

SB ACOUSTICS 12 SUB-WOOFER - SWPL DUAL COIL
SUB-WOOFER NOREX PAPER CONE LONG STROKE - DUAL VOICE CO
SKU code: WES_SB34SWPL76-3-DV_3
This is a SB ACOUSTICS 12 SUB-WOOFER - SWPL DUAL COIL of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 12 SUB-WOOFER - SWPL DUAL COIL |
| Notes | SUB-WOOFER NOREX PAPER CONE LONG STROKE - DUAL VOICE COIL Long stroke design. Linear high stability suspension. Low damping rubber surround. Dual 75mm copper voice coil. Non-conducting reinforced fibre glass coil former. Very stiff hard paper cone (made in-house). Vented cast aluminium chassis. Large vented motor system and vented coil former. Silver lead wires.Long stroke designLinear high stability suspensionHigher shore hardness rubber surroundDual 3’’ copper voice coilNon-conducting reinforced fibre glass coil formerVery stiff hard paper cone (made in-house)Vented cast aluminium chassisLarge vented motor system and vented coilformerLong life silver lead wires |
| Description | Dual Coil |
| Type | Subwoofer |
| Size | 12' |
| Price Type | each |
| Power | 300Wrms |
| Coil | 75.6mmØ |
| Width | 346mmØ |
| QTY | 1 |
| Impedance | 2x 3.0Ω (Re 2x 2.5Ω) |
| Depth | 166.7mm |
| Mag. | 2.4kg |
| Sens. | 90/85dB |
| Re | 2x 2.5Ω |
| Qms | 5.62 |
| Qes | 0.52 |
| Qts | 0.48 |
| Vas | 43L |
| Sd | 458cm² |
| Cms | 0.14mm/N |
| Fs | 27.5Hz |
| Mms | 231g |
| Zn | 1.4 /6.1mH |
| Le | 1.4/6.1mH |
| Rms | 7.1kg/s |
| Diam. | 305mmØ |
| Series | Norex Cones |
| Manufacturer | SB Acoustics |
| Materials | Norex |
| Impedance (Ohm) | 3+3 ohm |
| Power (RMS) | 200+ Watt |
| Inch | 12 |
| Bl | 9.7/19.5Tm |
| Xmax | 30mm |
| Flux (lm) | 0.62T |
| eBook | Link to eBook |
| Prms | 300W |
| Page | 36 |
| SKU No | WES_SB34SWPL76-3-DV_3 |
