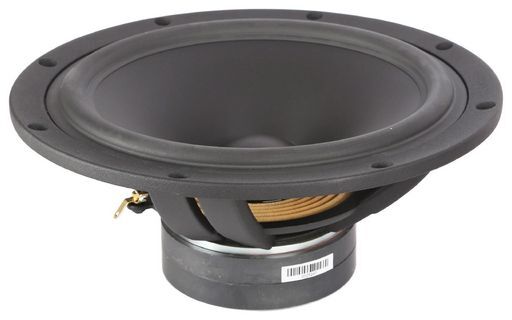

SB ACOUSTICS 12 SUBWOOFER - NRX
16 OHM VERSION - LONG STROKE - DOUBLE MAGNET 2.1KG
SKU code: WES_SB34NRX75-16_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SB ACOUSTICS 12 SUBWOOFER - NRX of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 12 SUBWOOFER - NRX |
| Notes | 16 OHM VERSION - LONG STROKE - DOUBLE MAGNET 2.1KG Hard Paper proprietary cone materials made in-house for consistency Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former. 16 ohm version is for multiple drives wired in parrallel but not reducing the drive impedance too low for older style audiophile amplifiers.Designed for open baffleHigh flow venting center pole3 CCAW voice coilLow dampening surroundNon-inductive voice coil formerProprietary cone materials made-in-houseCast Aluminium chassis |
| Description | - |
| Impedance | 16.0Ω (Re 14Ω) |
| Fs | 25Hz |
| Sens. | 86dB |
| Power | 100Wrms |
| Qms | 6.65 |
| Qes | 0.8 |
| Qts | 0.71 |
| Vas | 205L |
| Coil | 75.6mmØ |
| Depth | 156mm |
| Diam. | 305mmØ |
| Impedance (Ohm) | 16 ohm |
| Inch | 12 |
| Le | 3.2mH |
| Mag. | 2.1kg |
| Manufacturer | SB Acoustics |
| Materials | Norex |
| Mms | 72g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 14Ω |
| Sd | 508cm² |
| Series | Norex Cones |
| Size | 12' |
| Type | Woofer |
| Width | 346mmØ |
| Zn | 3.2mH |
| Cms | 0.56mm/N |
| Bl | 14.1Tm |
| Rms | 1.7kg/s |
| Xmax | 22mm |
| Flux (lm) | 0.9T |
| eBook | Link to eBook |
| Page | 35 |
| SKU No | WES_SB34NRX75-16_1 |
