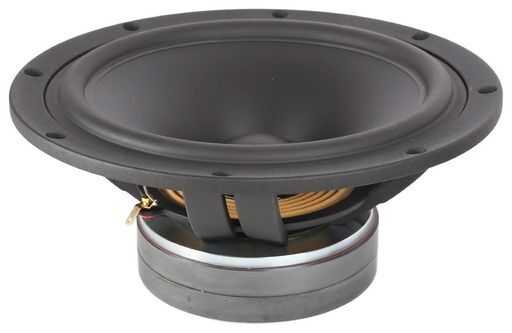

SB ACOUSTICS 12 WOOFER NRXL
LONG STROKE - HIGH FLUX - DOUBLE MAGNET 3.6KG
SKU code: WES_SB34NRXL75-8_1
This is a SB ACOUSTICS 12 WOOFER NRXL of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 12 WOOFER NRXL |
| Notes | LONG STROKE - HIGH FLUX - DOUBLE MAGNET 3.6KG Hard paper cone for improved piston operation (made in-house) with large motor system with under-cut pole piece and dual shorting rings. Vented pole piece and vented cast aluminium chassis for optimum strength and low compression. 3″ copper voice coil for improved power handling with long life silver lead wires. Low damping rubber surround for improved dynamic linearity. Non-conducting fibre glass voice coil former for minimum damping. Optimized driver for vented enclosures.Hard paper cone for improved piston operation (made in-house)Large motor system with under-cut pole piece and dual shorting ringsVented pole piece for minimum compressionVented cast aluminium chassis for optimum strength and low compression3″ copper voice coil for improved power handlingLong life silver lead wiresLow damping rubber surround for improved dynamic linearityNon-conducting fibre glass voice coil former for minimum dampingOptimized for vented enclosure The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimised speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To this end, SBA are proud to present their NRX series: Close attention to design engineering with manufacturing materials and processes to optimize performance. The coil former material is fibre glass. It is fundamental to use a non-conducting former material to ensure a low mechanical loss and high Qms. We prefer the damping to be electrical rather than mechanical, as this puts the amplifier in control. This is important if you want the driver to accurately reproduce the electrical signal. The woofers feature large diameter copper wire voice coils for improved power handling and allows for efficient ventilation through the centre pole. The basket is also vented under the spider to reduce compression to an absolute minimum, which is necessary to ensure good dynamics. The motor structure is simple, but all dimension have been optimizes to ensure BL symmetry and good saturation of the iron in the coil region. The surrounds are low damping SBR with a low shore hardness, which ensures good linearity. Stability is obtained by making the rolls just thick enough to withstand the high pressure in smaller cabinets without “collapsing”. The geometry of the surround and spider start limiting at the same time with a linear region slightly exceeding that of the coil overhang. This all ensures good linearity without hard clipping or mechanical damage to the cone at high levels. The cone material is made in-house using a proprietary blended hard stiff natural materials we call NOREX®. Cone stiffness is important to a woofer, as it should behave like a piston that moves air without flexing. This clearly improves bass reproduction. The baskets are cast aluminium to insure a rigid open structure. This makes the optimum foundation for the moving parts and has been designed not only to look good but also to offer some unique mounting options. They even come with gaskets pre-mounted. The copper cap also reduces the inductance. This results is increased bandwidth and improved transient response. |
| Description | - |
| Type | Woofer |
| Size | 12' |
| Price Type | each |
| Power | 200Wrms |
| Coil | 75.6mmØ |
| Width | 346mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 6.2Ω) |
| Depth | 159mm |
| Mag. | 3.6kg |
| Sens. | 91dB |
| Re | 6.2Ω |
| Qms | 5.5 |
| Qes | 0.29 |
| Qts | 0.28 |
| Vas | 205L |
| Sd | 508cm² |
| Cms | 0.56mm/N |
| Fs | 22Hz |
| Mms | 93g |
| Zn | 1.2mH |
| Le | 1.2mH |
| Rms | 2.35kg/s |
| Diam. | 305mmØ |
| Series | Norex Cones |
| Manufacturer | SB Acoustics |
| Materials | Norex |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 151-200 Watt |
| Inch | 12 |
| Bl | 16.6Tm |
| Xmax | 20mm |
| Flux (lm) | 1.1T |
| eBook | Link to eBook |
| Prms | 200W |
| Page | 35 |
| Brand. | SB Acoustics |
| SKU No | WES_SB34NRXL75-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB34NRXL75-8 |
| SKU | WES_SB34NRXL75-8_1 |
| Brand | SB Acoustics |
