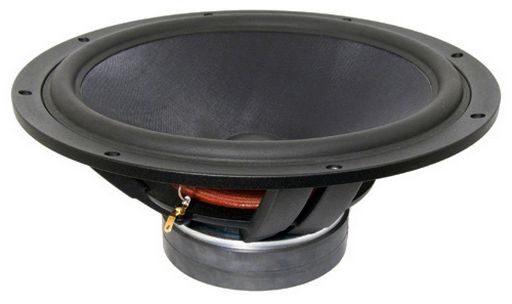

SB ACOUSTICS 15 SUB-WOOFER - FHC
HONEYCOMB CONE
SKU code: WES_SB42FHC75-6_1
This is a SB ACOUSTICS 15 SUB-WOOFER - FHC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 15 SUB-WOOFER - FHC |
| Notes | HONEYCOMB CONE Hard Paper proprietary cone materials made in-house for consistency Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former. Suggested Alignments: Sealed box of 85 litres for an F3 of 45Hz. Vented box 140L for an F3 of 32Hz with a 10cm diameter vent by 18cmLight weight rigid honeycomb cone (hard paper honeycomb with fiber glass skin layers)3 copper voice coil for improved power handlingLong life silver lead wiresVented pole piece for minimum compressionVented cast aluminium chassis for optimum strength and low compressionLow damping rubber surround for improved dynamic linearityNon-conducting fiber glass voice coil former for minimum damping |
| Description | - |
| Type | Woofer |
| Size | 15' |
| Price Type | each |
| Power | 300Wrms |
| Coil | 75.6mmØ |
| Width | 417mmØ |
| QTY | 1 |
| Impedance | 6Ω (Re 4.6Ω) |
| Depth | 188.7mm |
| Mag. | 3.6kg |
| Sens. | 93dB |
| Re | 4.6Ω |
| Qms | 7.0 |
| Qes | 0.40 |
| Qts | 0.38 |
| Vas | 331L |
| Sd | 850cm² |
| Cms | 0.45mm/N |
| Fs | 22Hz |
| Mms | 166g |
| Zn | 6Ω |
| Le | 2.1mH |
| Rms | 2.6kg/s |
| Diam. | 381mmØ |
| Series | Honeycomb |
| Manufacturer | SB Acoustics |
| Materials | Honeycomb |
| Impedance (Ohm) | 6 ohm |
| Power (RMS) | 200+ Watt |
| Inch | 15 |
| eBook | Link to eBook |
| Prms | 300W |
| Page | 36 |
| Brand. | SB Acoustics |
| SKU No | WES_SB42FHC75-6_1 |
