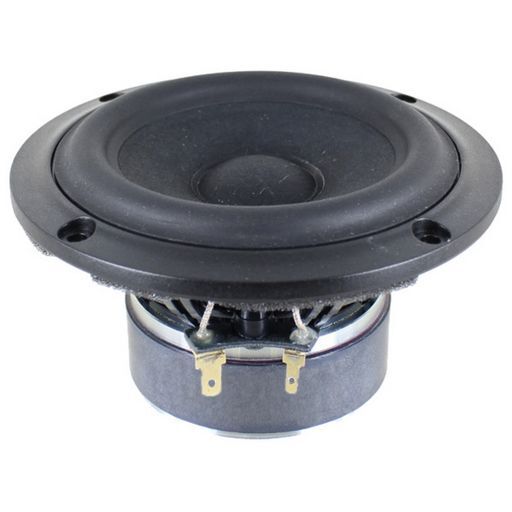

This is a SB ACOUSTICS 4 MID-WOOFER - PFCR of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 4 MID-WOOFER - PFCR
Notes 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis Available in 4 ohm or 8 ohm modelsVented reinforced plastic chassisProprietary cone material with natural fibres made in-houseButyl rubber surround for smooth frequency responseVented motor system for low compressionLong stroke linear suspension for improved dynamicsNon-resonant long life lead wires
Description25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis
Coil25.4mmØ
Depth59mm
Fs58Hz
Impedance4Ω (Re 3.1Ω)
Impedance (Ohm)4 ohm
Inch4'
Le0.26mH
Mag.0.32kg
ManufacturerSB Acoustics
Mms5.3g
Power30Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms30W
Qes0.49
Qms3.4
Qts0.43
QTY1
Re3.1Ω
Sd50cm²
Sens.87.5dB
SeriesPolymer chassis
Size4'
TypeWoofer
Vas5.2L
Width122mmØ
Zn0.26mH
eBookLink to eBook
Rms0.6kg/s
Flux (lm)0.84T
Cms1.42mm/N
Xmax10mm
Page22
Bl3.5Tm
SKU NoWES_SB12PFCR25-4_1
