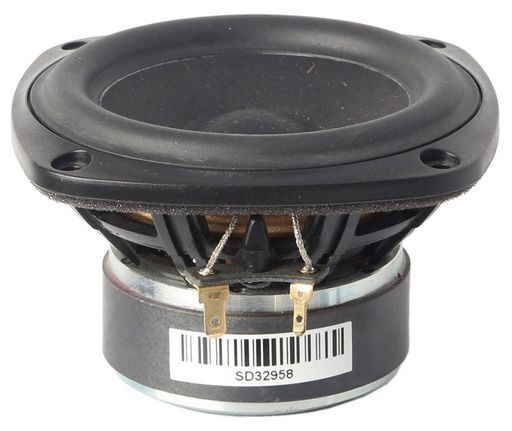

SB ACOUSTICS 4 MID-WOOFER - PFC
MINERAL REINFORCED PLASTIC FRAME
SKU code: WES_SB12PFC25-8_1
This is a SB ACOUSTICS 4 MID-WOOFER - PFC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 4 MID-WOOFER - PFC |
| Notes | MINERAL REINFORCED PLASTIC FRAME Vented reinforced plastic chassis. Proprietary cone material with natural fibers made in-house. Butyl rubber surround for smooth frequency response. Vented motor system for low compression. Long stroke linear suspension for improved dynamics. Non-resonant long life lead wires.Vented reinforced plastic chassisProprietary cone material with natural fibers made in-houseButyl rubber surround for smooth frequency responseVented motor system for low compressionLong stroke linear suspension for improved dynamicsNon-resonant long life lead wires |
| Description | 4' mid woofer |
| Type | Mid-Woofer |
| Size | 4' |
| Price Type | each |
| Power | 30Wrms |
| Coil | 25.4mmØ |
| Width | 109mmØ |
| QTY | 1 |
| Weight | 0.7kg |
| Impedance | 8Ω (Re 6.4Ω) |
| Depth | 59mm |
| Mag. | 0.32g |
| Sens. | 84.5dB |
| Re | 6.4Ω |
| Qms | 4.1 |
| Qes | 0.65 |
| Qts | 0.56 |
| Vas | 4.3L |
| Sd | 50cm² |
| Cms | 1.21mm/N |
| Fs | 64Hz |
| Mms | 5.1g |
| Zn | 0.36mH |
| Le | 0.36mH |
| Rms | 0.5kg/s |
| Diam. | 100mmØ |
| Series | Natural fibre cone |
| Manufacturer | SB Acoustics |
| Materials | Natural fibre |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 4 |
| Bl | 4.5Tm |
| Xmax | 10mm |
| Flux (lm) | 0.84T |
| eBook | Link to eBook |
| Page | 21 |
| Prms | 30W |
| SKU No | WES_SB12PFC25-8_1 |
