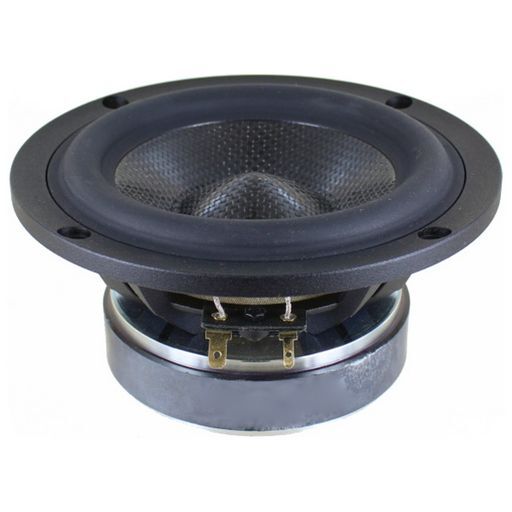

This is a SB ACOUSTICS 5 MID-WOOFER - CARBON FIBRE CRC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 5 MID-WOOFER - CARBON FIBRE CRC
Notes 30mm Voice coil, woofen carbon + rohacell cone, rubber surround, ferrite motor, aluminium chassisRohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratioVented cast aluminium chassis for optimum strength and low compressionLow damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving mass and Long life silver lead wiresVented pole piece for reduced compression
DescriptionRohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio
Coil30.5mmØ
Depth68.3mm
Fs37Hz
Impedance4Ω (Re 3.1Ω)
Impedance (Ohm)4 ohm
Inch5'
Le0.12mH
Mag.0.54kg
ManufacturerSB Acoustics
Mms10.2g
Power50Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms50W
Qes0.36
Qms3.39
Qts0.32
QTY1
Re3.1Ω
Sd82cm²
Sens.88.5dB
SeriesPolymer chassis
Size5'
TypeWoofer
Vas17.3L
Width150mmØ
Zn0.12mH
eBookLink to eBook
Rms0.7kg/s
Cms1.81mm/N
Xmax11mm
Flux (lm)1T
Page26
Bl4.55Tm
SKU NoWES_SB15CRC30-4_1
