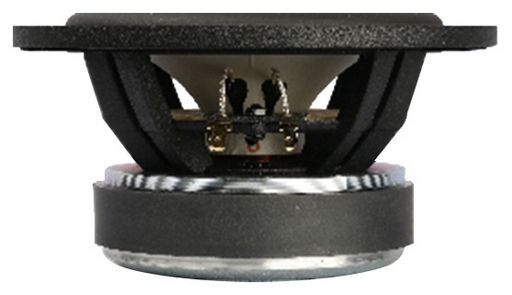

SB ACOUSTICS 5 MID-WOOFER - CERAMIC CAC
CERAMIC CONE
SKU code: WES_SB15CAC30-4_1
This is a SB ACOUSTICS 5 MID-WOOFER - CERAMIC CAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 5 MID-WOOFER - CERAMIC CAC |
| Notes | CERAMIC CONE Vented cast aluminium chassis for optimum strength and low compression. Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.Vented cast aluminium chassis for optimum strength and low compressionGeometrically reinforced ceramic cone for optimum piston operation and reduced break-upSoft low damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression |
| Description | - |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 50Wrms |
| Coil | 30.5mmØ |
| Width | 150mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.1Ω) |
| Depth | 68.3mm |
| Mag. | 1.46kg |
| Sens. | 88dB |
| Re | 3.1Ω |
| Qms | 4.61 |
| Qes | 0.34 |
| Qts | 0.31 |
| Vas | 20.2L |
| Sd | 82cm² |
| Cms | 2.12mm/N |
| Fs | 32.5Hz |
| Mms | 11.3g |
| Zn | 0.12mH |
| Le | 0.12mH |
| Rms | 0.5kg/s |
| Diam. | 127mmØ |
| Manufacturer | SB Acoustics |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 5 |
| Bl | 4.6Tm |
| Xmax | 10mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Page | 26 |
| Prms | 50W |
| Materials | Ceramic |
| Series | Ceramic Cone |
| SKU No | WES_SB15CAC30-4_1 |
