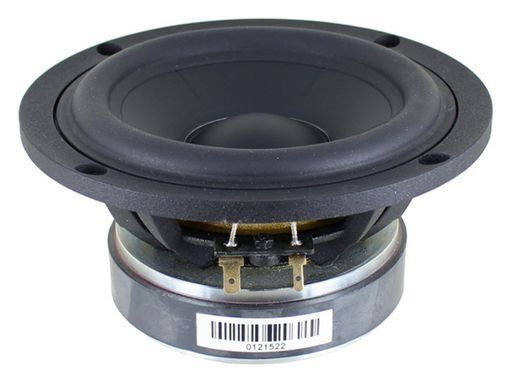

SB ACOUSTICS 5 MID-WOOFER - NBAC
ALUMINIUM CHASSIS - ALUMINIUM CONE BLACK
SKU code: WES_SB15NBAC30-8_1
This is a SB ACOUSTICS 5 MID-WOOFER - NBAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 5 MID-WOOFER - NBAC |
| Notes | ALUMINIUM CHASSIS - ALUMINIUM CONE BLACK Vented cast aluminium chassis for optimum strength and low compression. Geometrically reinforced aluminium cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.Vented cast aluminium chassis for optimum strength and low compressionGeometrically reinforced aluminium cone for optimum piston operation and reduced break-upSoft low damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression |
| Description | - |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 50Wrms |
| Coil | 30.5mmØ |
| Width | 150mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 5.7Ω) |
| Depth | 68.3mm |
| Mag. | 0.54kg |
| Sens. | 85.5dB |
| Re | 5.7Ω |
| Qms | 4.22 |
| Qes | 0.41 |
| Qts | 0.37 |
| Vas | 17L |
| Sd | 82cm² |
| Cms | 1.81mm/N |
| Fs | 35.5Hz |
| Mms | 10g |
| Zn | 0.14mH |
| Le | 0.14mH |
| Rms | 0.6kg/s |
| Diam. | 127mmØ |
| Manufacturer | SB Acoustics |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 5 |
| Bl | 5.7Tm |
| Xmax | 10mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Page | 26 |
| Prms | 50W |
| Series | Alu-Cones |
| Materials | Aluminium |
| SKU No | WES_SB15NBAC30-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SB15NBAC30-8 |
| SKU | WES_SB15NBAC30-8_1 |
| Brand | SB Acoustics |
