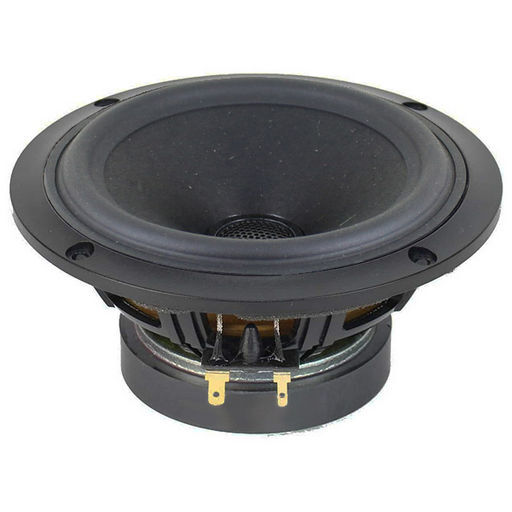

This is a SB ACOUSTICS 5 MID-WOOFER - PFCR COAXIAL of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 5 MID-WOOFER - PFCR COAXIAL
Notes 2-WAY COAXIAL MID-WOOFER & TWEETER 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial midwoofer. Vented reinforced plastic chassis. Proprietary cone material with natural fibres made in-house. Soft low damping rubber surround for improved transient response. Optimised motor system. Non-resonant long life lead wires. Compact large surround dome tweeter.
Description25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial midwoofer
Coil25.4mmØ
Depth69mm
Fs43Hz
Impedance4Ω (Re 3.2 Ω)
Impedance (Ohm)4 ohm + 4 ohm
Inch5'
Le0.3mH
Mag.0.36kg
ManufacturerSB Acoustics
Mms9.1g
Power40Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms40W
Qes0.3
Qms2.26
Qts0.27
QTY1
Re3.2Ω
Sd82cm²
Sens.90dB
SeriesPolymer chassis
Size5'
TypeMid-Woofer + tweeter
Vas14.4L
Width150.5mmØ
Zn0.3mH
Cms1.51mm/N
Rms1.1kg/s
Bl5.1Tm
Xmax9.3mm
Flux (lm)1.1T
Page25
eBookLink to eBook
SKU NoWES_SB13PFCR25-4-COAX_1
