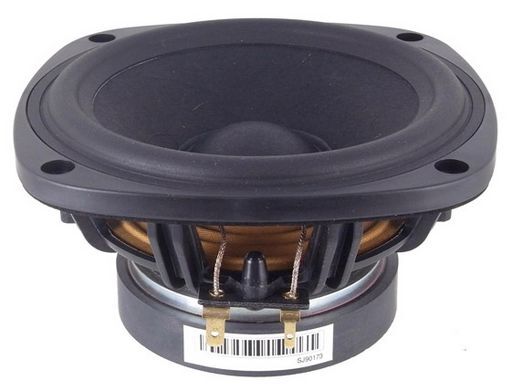

SB ACOUSTICS 5 MID-WOOFER - PFC
MINERAL REINFORCED PLASTIC FRAME
SKU code: WES_SB13PFC25-8_1
This is a SB ACOUSTICS 5 MID-WOOFER - PFC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 5 MID-WOOFER - PFC |
| Notes | MINERAL REINFORCED PLASTIC FRAME Vented reinforced plastic chassis. Proprietary cone material with natural fibers made in-house. Soft low damping rubber surround for improved transient response. Optimized motor system. Vented coil former for low compression. Non-resonant long life lead wires.Vented reinforced plastic chassisProprietary cone material with natural fibers made in-houseSoft low damping rubber surround for improved transient responseOptimized motor systemVented coil former for low compressionNon-resonant long life lead wires |
| Description | - |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 40Wms |
| Coil | 25.4mmØ |
| Width | 139mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 5.0Ω) |
| Depth | 80.65mm |
| Mag. | 0.36kg |
| Sens. | 87dB |
| Re | 5.0Ω |
| Qms | 2.2 |
| Qes | 0.39 |
| Qts | 0.33 |
| Vas | 13.4L |
| Sd | 87cm² |
| Cms | 1.25mm/N |
| Fs | 45Hz |
| Mms | 10g |
| Zn | 0.77mH |
| Le | 0.77mH |
| Rms | 1.4kg/s |
| Diam. | 127mmØ |
| Series | Polymer chassis |
| Manufacturer | SB Acoustics |
| Materials | Papyrus |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 5 |
| Bl | 6.2Tm |
| Xmax | 9mm |
| Flux (lm) | 1.07T |
| eBook | Link to eBook |
| Page | 25 |
| Prms | 40Wms |
| SKU No | WES_SB13PFC25-8_1 |
