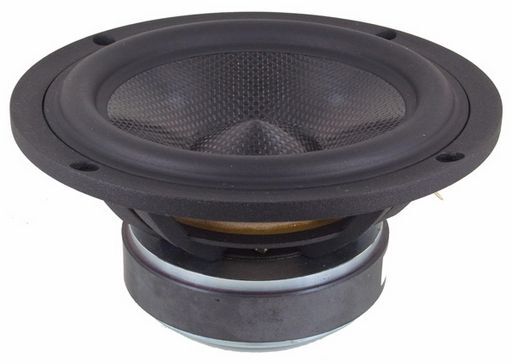

This is a SB ACOUSTICS 6.5 MID-WOOFER - CARBON FIBRE CRC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 6.5 MID-WOOFER - CARBON FIBRE CRC
Notes WOVEN CARBON FIBRE & ROHACELL® Rohacell® carbon fibre sandwich cone for optimised stiffness to damping ratio. Vented cast aluminium chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.Rohacell®/Carbon fibre sandwich cone for optimised stiffness/damping ratioVented cast aluminium chassis for optimum strength and low compressionLow damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression
Description-
TypeMid-Woofer
Size6'
Price Typeeach
Power60Wrms
Coil35.5mmØ
Width171mmØ
QTY1
Impedance4Ω (Re 3.1Ω)
Depth86mm
Mag.0.54kg
Sens.90dB
Re3.1Ω
Qms4.32
Qes0.35
Qts0.32
Vas35.5L
Sd118cm²
Cms1.8mm/N
Fs31.5Hz
Mms14.2g
Zn0.13mH
Le0.13mH
Rms0.65kg/s
Diam.152mmØ
SeriesCarbon Fibre
ManufacturerSB Acoustics
MaterialsCarbon Fibre
Impedance (Ohm)4 ohm
Power (RMS)51-100 Watt
Inch6
Bl5Tm
Xmax11mm
Flux (lm)1T
eBookLink to eBook
Page29
Prms60W
SKU NoWES_SB17CRC35-4_1
