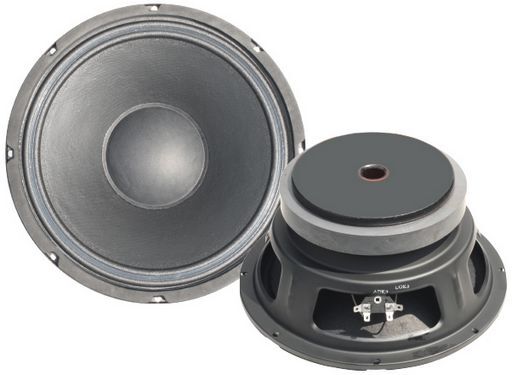

This is a SB AUDIENCE BIANCO 10 MID-WOOFER 150W of brand SB Audience.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB AUDIENCE BIANCO 10 MID-WOOFER 150W
Notes Proprietary cone paper material with linter pulp2.4 voice coil with APC (Advanced Polymer Coating)Vented back plate for reduced compressionMinimum damping fibre glass voice coil formerWeather-proof coated cone paperLong life silver lead wires 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
Description10” - Midwoofer - 150W - 98dB
Coil60.5mm
Cms0.18mm/N
Depth114mm
Fs60Hz
Impedance8Ω (Re:5.2Ω)
Impedance (Ohm)8 ohm
Inch10'
Le0.64mH
ManufacturerSB Audience
MaterialsTill
Mms37.3g
Power150W AES
Power (RMS)101-150 Watt
Price Typeeach
Prms150W
Qes0.3
Qms11.81
Qts0.29
QTY1
Re5.2Ω
Rms1.2kg/s
Sd0.3664L
Sens.98dB
SeriesSB Pro-mid woofers
Size10'
TypeMid woofer
Vas34.6L
Width258mmØ
Zn
Freq.60-4600Hz
Pmax300W
Page38
eBookLink to eBook
Brand.SB Accoustics
SKU NoWES_BIANCO-10MW150_1
