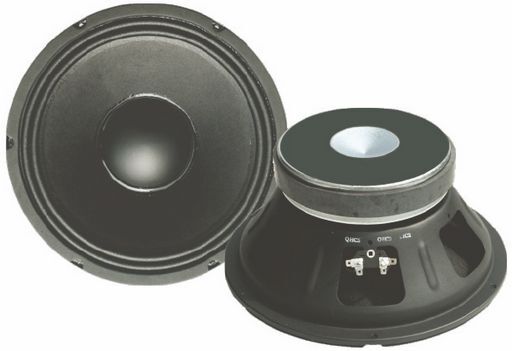

This is a SB AUDIENCE BIANCO 10 MID-WOOFER 200W of brand SB Audience.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB AUDIENCE BIANCO 10 MID-WOOFER 200W
Notes Proprietary cone paper material with linter pulp2.4 voice coil with APC (Advanced Polymer Coating)Vented back plate for reduced compressionMinimum damping fibre glass voice coil formerWeather-proof coated cone paperLong life silver lead wires 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
Description10” - Woofer - 200W - 97dB
Cms0.21mm/N
Coil60.5mm
Depth110.5mm
Fs58Hz
Impedance8Ω (Re:5.7Ω)
Impedance (Ohm)8 ohm
Inch10'
Le0.61mH
ManufacturerSB Audience
MaterialsKapton
Mms36.4g
Power200W AES
Power (RMS)151-200 Watt
Price Typeeach
Prms200W
Qes0.41
Qms1.86
Qts0.33
QTY1
Re5.7Ω
Rms7.1kg/s
Sd0.3664L
Sens.97dB
SeriesSB Pro-woofers
Size10'
TypeWoofer
Vas39.3L
Width254mmØ
Zn
Freq.58-6400Hz
Pmax400W
Page38
eBookLink to eBook
Brand.SB Accoustics
SKU NoWES_BIANCO-10MW200_1
