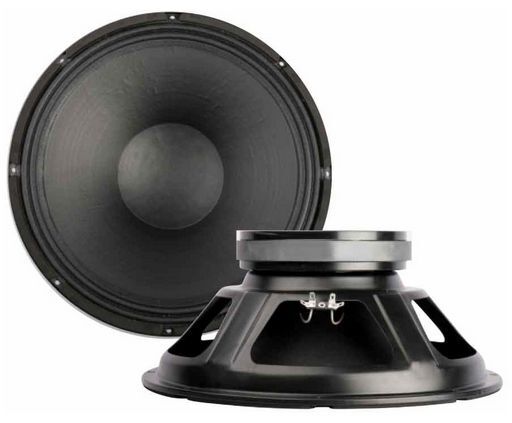

This is a SB AUDIENCE BIANCO 15 WOOFER 200W of brand SB Audience.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB AUDIENCE BIANCO 15 WOOFER 200W
Notes Proprietary cone paper material with silk cotton tree and manila pulp3 voice coil with APC (Advanced Polymer Coating)Minimum damping fibre glass voice coil formerVented back plate for reduced compressionLong life silver lead wiresWeather-proof coated cone paper 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
Description15” - Woofer - 200W - 99dB
Cms0.14mm/N
Coil75.5mm
Depth153.5mm
Fs44Hz
Impedance8Ω (Re:5.2Ω)
Impedance (Ohm)8 ohm
Inch15'
Le0.75mH
ManufacturerSB Audience
MaterialsTill
Mms97.5g
Power200W AES
Power (RMS)151-200 Watt
Price Typeeach
Prms200W
Qes0.54
Qms11.99
Qts0.52
QTY1
Re5.2Ω
Rms2.2kg/s
Sd0.9079L
Sens.99dB
SeriesSB Pro-woofers
Size15'
TypeWoofer
Vas155.8L
Width385.5mmØ
Zn
Freq.44-5000Hz
Pmax400W
Page39
eBookLink to eBook
Brand.SB Accoustics
SKU NoWES_BIANCO-15W200_1
