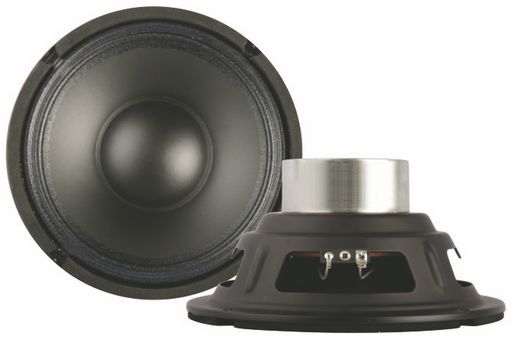

This is a SB AUDIENCE BIANCO 8 MID-WOOFER 150W of brand SB Audience.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB AUDIENCE BIANCO 8 MID-WOOFER 150W
Notes Proprietary cone paper material made in-houseNeodymium magnet with Vented back plate2.4 voice coil with APC (Advanced Polymer Coating)Minimum damping fibre glass voice coil formerCCAW voice coil wire for reduced moving massLong life silver lead wires 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
Description8' - Midrange - 150W - 93dB
Cms0.14mm/N
Coil60.5mm
Depth91mm
Fs77Hz
Impedance8Ω (Re 6.8Ω)
Impedance (Ohm)8 ohm
Inch8'
Le1.08mH
ManufacturerSB Audience
MaterialsTill
Mms29.8g
Power150W AES
Power (RMS)101-150 Watt
Price Typeeach
Prms150W
Qes0.38
Qms8.54
Qts0.36
QTY1
Re6.8Ω
Rms1.7kg/s
Sd0.2243L
Sens.93dB
SeriesSB Pro-woofers
Size8'
TypeWoofer
Vas10L
Width205.6mmØ
Zn
Freq.77-6000Hz
Pmax300W
Page37
eBookLink to eBook
Brand.SB Accoustics
SKU NoWES_BIANCO-8MWN150_1
