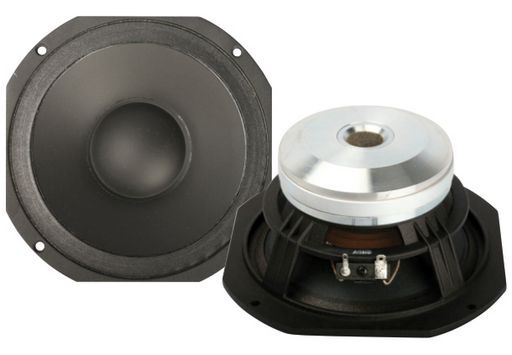

SB AUDIENCE NERO 6 MID-RANGE 150W
SB AUDIENCE NERO 6 MID-RANGE 150W
SKU code: WES_NERO-6MRN150D_1
This is a SB AUDIENCE NERO 6 MID-RANGE 150W of brand SB Audience.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB AUDIENCE NERO 6 MID-RANGE 150W |
| Notes | Heavy-duty commercial grade speaker driver. Cast aluminium frame. Neodymium magnet with 50mmØ copper clad aluminium coil and aluminium shorting ring motor for exceptionally high efficiencies.This is an excellent driver for midrange, even for high efficiency hifi. But not suitable for mid bass. Recommended crossover frequency of 400Hz to 600Hz. NERO-6MRN150D is a midrange driver for special purposes including high efficiency horn and compression loading applications. The high-ish Fs and suspension compliance, as well as very light weight moving mass, makes this driver suitable for midrange reproduction and not bass reproduction. The Vas is simply another way of representing the compliance (Cms) by the equivalent volume of air that would have the same suspension compliance / spring load force excerpted to the speakers. So the very stiff suspension naturally results in a small Vas. Traditional box volume calculations are not that relevant since the driver is not suitable for low frequencies and it is therefore simply a question of using a midrange chamber that is practicable for this size driver. A typical crossover frequency would be 600Hz or higher for high power applications and probably no lower than 400Hz for direct radiating applications. The driver works very well in this sort of situation even though the critically damped box size is suggested to be smaller than what is practical, but we wouldn't be operating at the frequencies where this has much influence on the midrange. Damping material properties and the amount of damping would be important to get right to avoid nasty resonances. Experimentation is advised for damping. Build as small as is practical and it will work well for midrange.Proprietary cone paper material with graphiteCast aluminium chassis & neodymium magnetFlat foam surround for best mid-range reproductionShorting ring in motor system for reduced distortionCCAW voice coil for reduced moving mass 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power. |
| Description | 6' - Midrange - Neo - 150W - 99dB |
| Cms | 0.04mm/N |
| Coil | 49.5mm |
| Depth | 73mm |
| Fs | 200Hz |
| Impedance | 8Ω (Re 5.6Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 6' |
| Le | 0.27mH |
| Manufacturer | SB Audience |
| Materials | Till |
| Mms | 13.8g |
| Power | 150W AES |
| Power (RMS) | 101-150 Watt |
| Price Type | each |
| Prms | 150W |
| Pmax | 300W |
| Qes | 0.58 |
| Qms | 2.98 |
| Qts | 0.48 |
| QTY | 1 |
| Re | 5.6Ω |
| Rms | 6kg/s |
| Sd | 0.1368L |
| Sens. | 98dB |
| Series | SB Pro-mid range |
| Size | 6' |
| Type | Mid range |
| Vas | 1.1L |
| Width | 162.7mm |
| Zn | 8Ω |
| Freq. | 200-11300Hz |
| Page | 37 |
| eBook | Link to eBook |
| Brand. | SB Accoustics |
| SKU No | WES_NERO-6MRN150D_1 |
