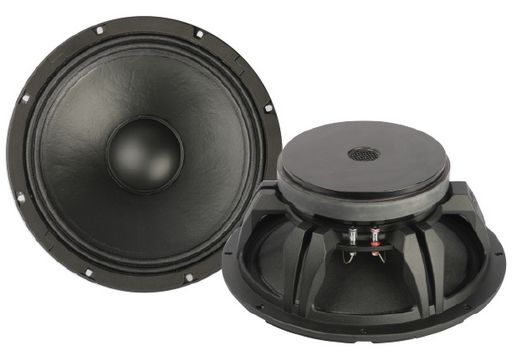

This is a SB AUDIENCE ROSSO 12 MID-WOOFER 300W of brand SB Audience.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB AUDIENCE ROSSO 12 MID-WOOFER 300W
Notes Proprietary paper cone material with silk cotton tree3” Interleaved Sandwich Voice coilCast aluminium chassisMinimum damping fibre glass voice coil formerCCAW voice coil for reduced moving massVented back plate for reduced compression 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power.
Description12' - Midwoofer - 300W - 99dB
Cms0.25mm/N
Coil75.6mm
Depth125.3mm
Fs43Hz
Impedance8Ω (Re 5.2Ω)
Impedance (Ohm)8 ohm
Inch12'
Le0.6mH
ManufacturerSB Audience
MaterialsTill
Mms53g
Power300W AES
Power (RMS)200+ Watt
Price Typeeach
Prms300W
Qes0.27
Qms12.7
Qts0.26
QTY1
Re5.2Ω
Rms1.1kg/s
Sd0.5433L
Sens.99dB
SeriesSB Pro-mid woofers
Size12'
TypeMid woofer
Vas104.2L
Width322.5mmØ
Zn
Freq.43-5200Hz
Pmax600W
Page38
eBookLink to eBook
Brand.SB Accoustics
SKU NoWES_ROSSO-12MW300_1
