SCAN-SPEAK 1 DOME TWEETER BERYLLIUM
62MM COMPACT ILLUMINATOR
SKU code: WES_D3004604010_1

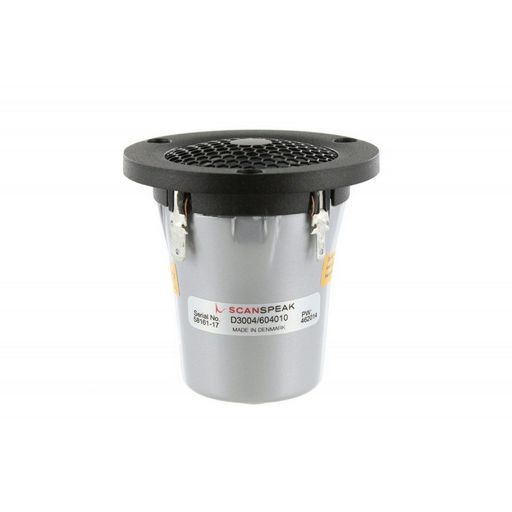

This is a SCAN-SPEAK 1 DOME TWEETER BERYLLIUM of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER BERYLLIUM |
| Notes | 62MM COMPACT ILLUMINATOR This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterised by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound. And indeed, the 1” tweeter sounds great. It has a very low distortion and a distinct clarity that brings out the best in all types of music.1 Beryllium diaphragm (99% pure BE)Large non resonant aluminium enclosureSound transparant protective grillPatented symetrical drive (SD-2) motorLarge roll surround f. wide dispersionApplicable for HiFi and automotive |
| Description | 26mm Beryllium Dome Tweeter 4 ohm, Neo, Large Chamber, Grill |
| Cms | 0.43mm/N |
| Coil | 26mmØ |
| Depth | 56mm |
| Fs | 450Hz |
| Impedance | 4Ω (Re 3.6Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.20kg |
| Mms | 0.35g |
| Power | 50Wrms |
| Power (RMS) | 0-50 Watt |
| Qes | 0.97 |
| Qms | 2.50 |
| Qts | 0.70 |
| Re | 3.6Ω |
| Rms | 0.4kg/s |
| Sd | 7.0cm² |
| Sens. | 90.5dB |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.03L |
| Width | 62mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Price Type | each |
| Series | Illuminator |
| Brand. | ScanSpeak |
| SKU No | WES_D3004/604010_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D3004/604010 |
| SKU | WES_D3004604010_1 |
| Brand | Scan-speak |
